3 Scalable Airframes

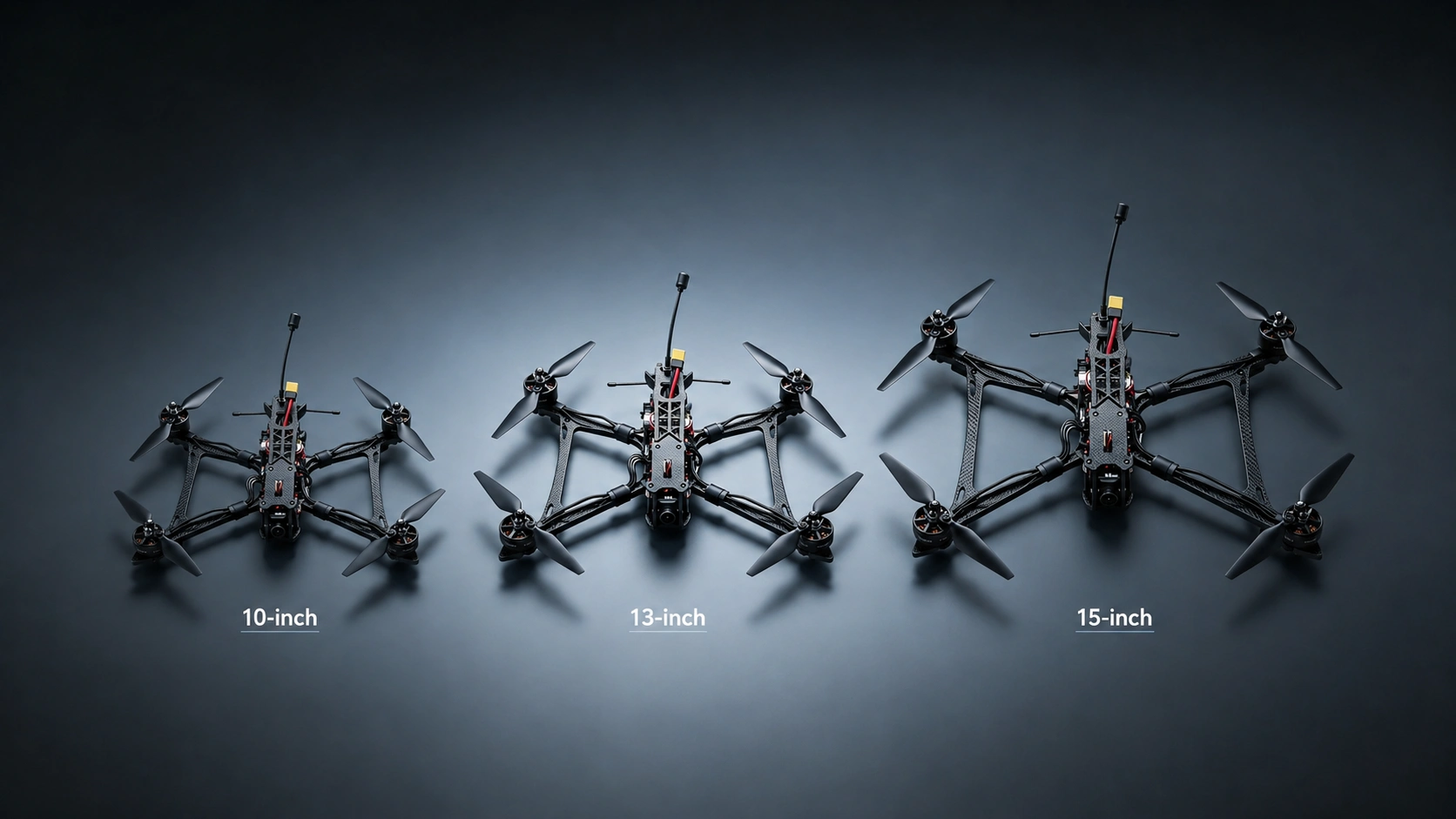

Choose from 10-, 13-, and 15-inch airframes to match portability, endurance, and payload requirements.
Product Brief // Falcon

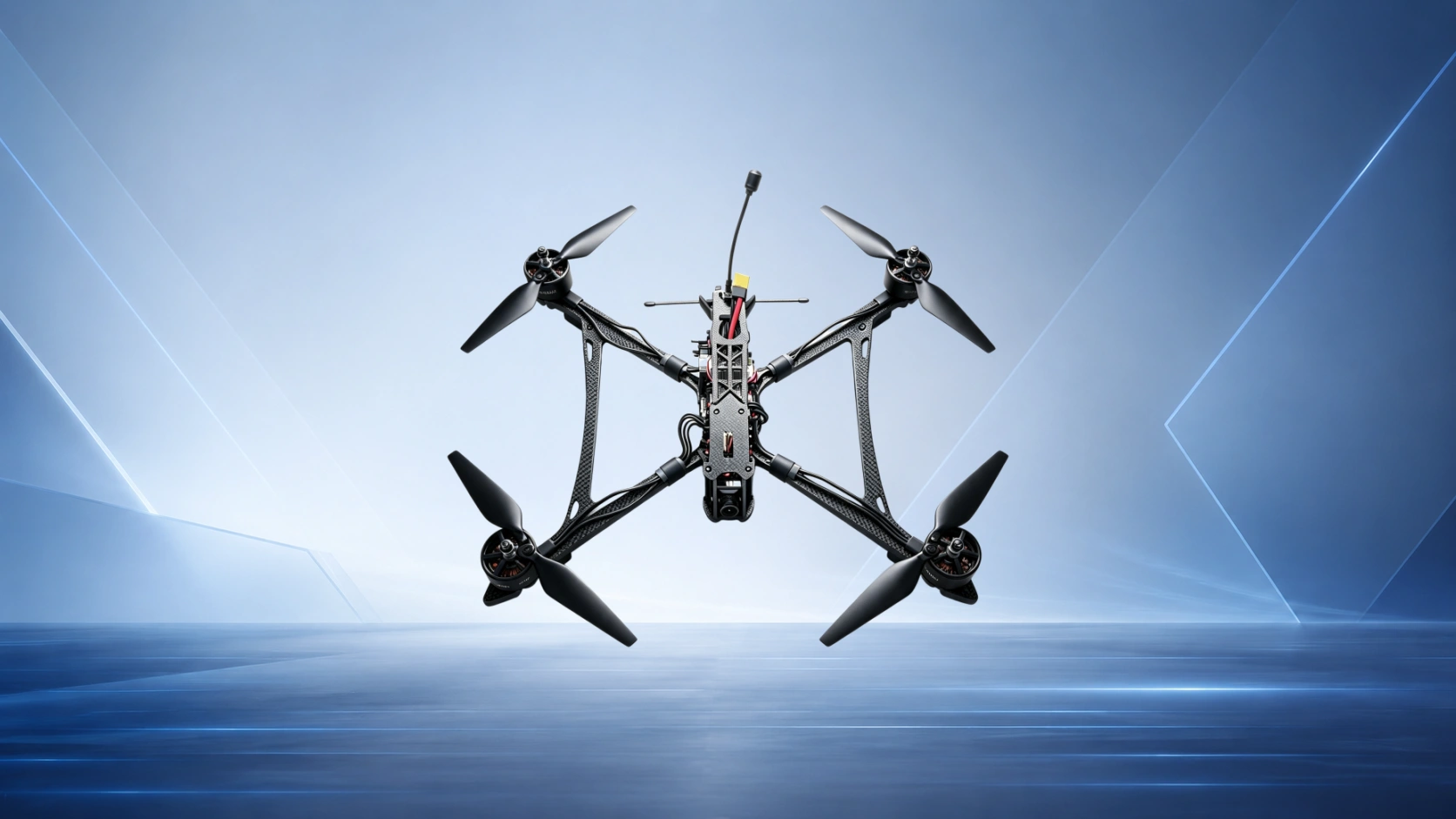

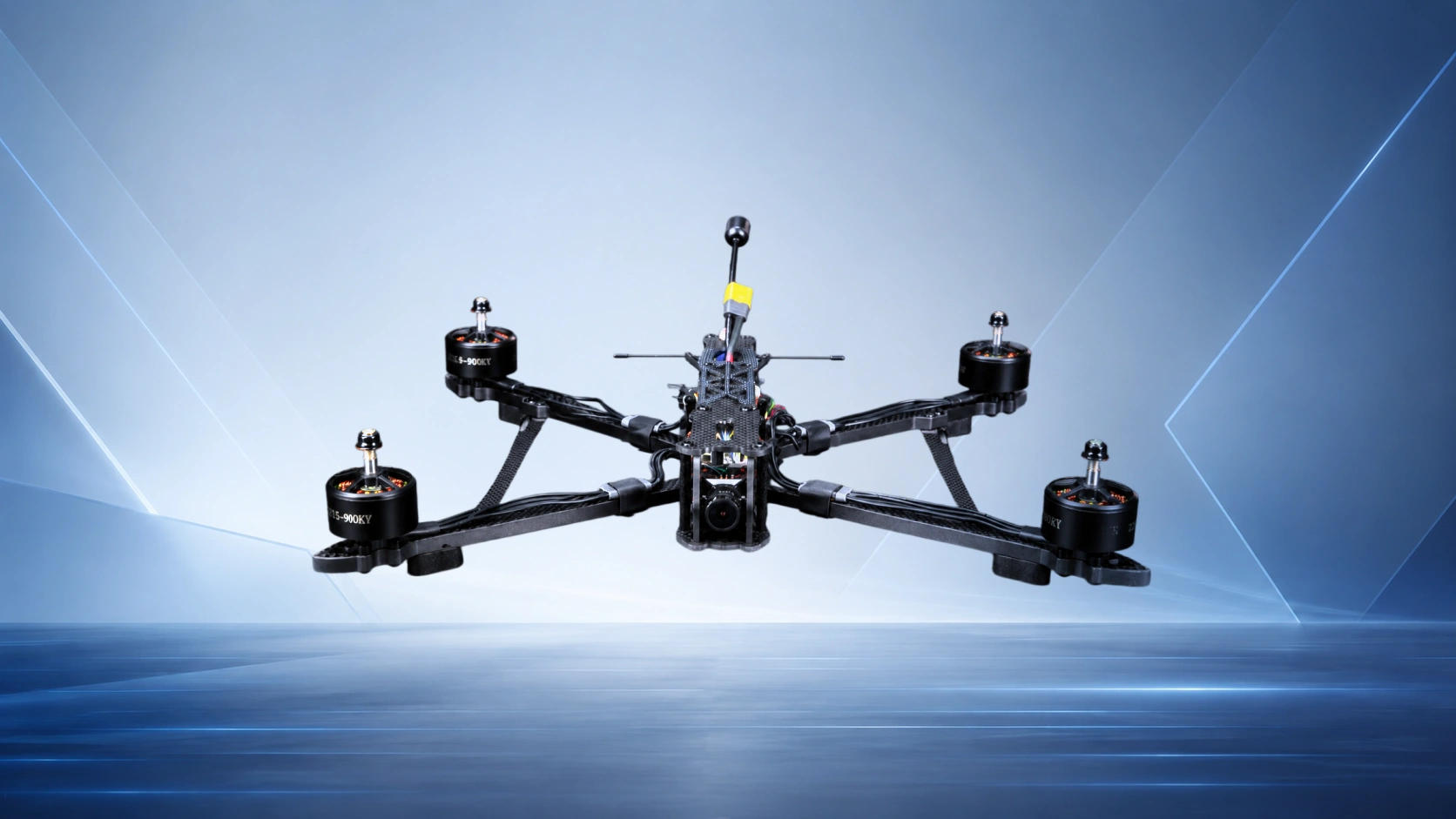

Falcon FPV Strike Drone Series
A configurable FPV multirotor platform for precise, intelligent, and cost-effective mission execution. Available in 10-, 13-, and 15-inch airframes, with up to 8 kg payload, 35 m/s maximum speed, and tiered sensing and AI configurations.
Product Overview
SCALABLE FPV STRIKE PLATFORM
Falcon is a modular FPV multirotor strike drone family designed for precise control, flexible payload integration, and mission adaptability. Available in 10-, 13-, and 15-inch airframe configurations, the series offers different combinations of portability, endurance, and payload capacity to meet diverse operational requirements.
The Falcon family includes three capability levels: Falcon B with a visible-light FPV system for direct manual control, Falcon S with AI-based recognition, locking, and tracking capabilities, and Falcon P featuring a 640×512 thermal camera for combined visible and thermal imaging with AI assistance in day-and-night operations. All models support optional fiber-optic datalinks to enhance communication stability and interference resistance, providing a scalable and cost-effective solution for teams with varying sensing, communication, and payload needs.
Key Features
SCALABLE MISSION PERFORMANCE
Up to 8 kg Payload

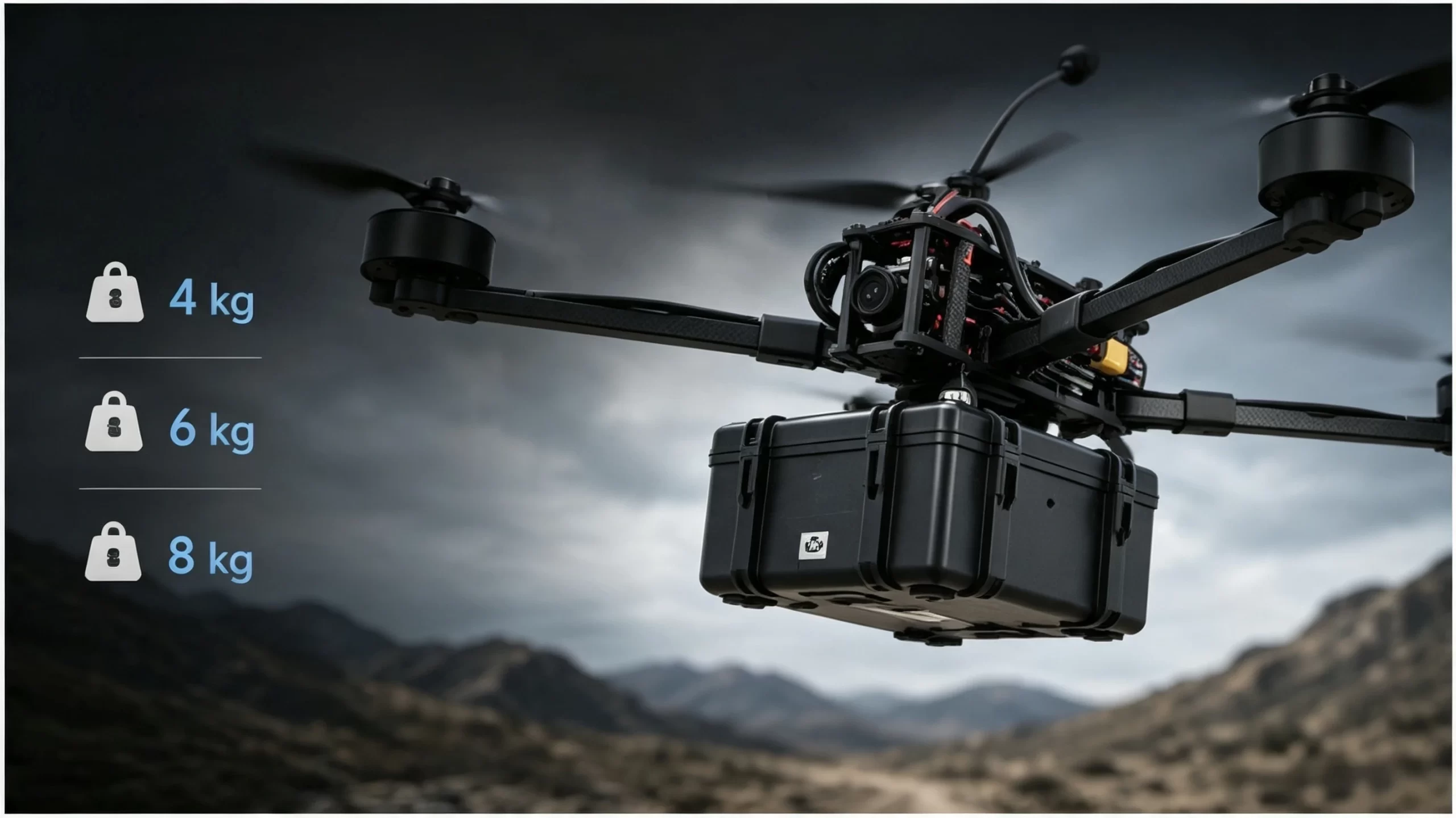

Maximum payload capacities of 4, 6, and 8 kg provide the lifting margin needed for different mission configurations.
High-Speed Response

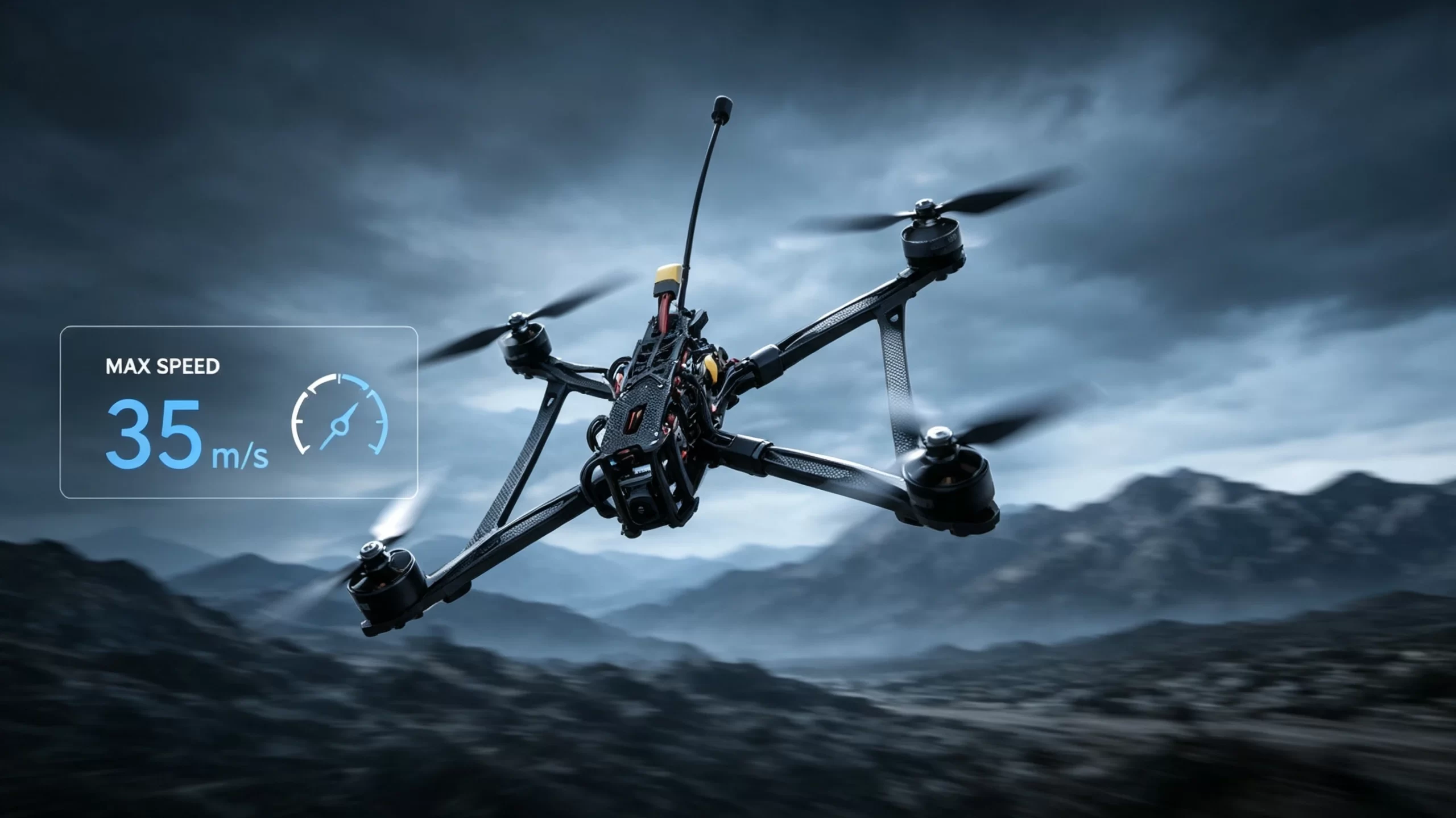

A maximum speed of 35 m/s enables rapid approach, repositioning, and time-critical response.
Tiered Sensing & AI
Falcon B provides visible-light FPV; Falcon S adds AI recognition, locking, and tracking; Falcon P adds 640×512 thermal imaging.
Core Functions
FROM DIRECT CONTROL TO INTELLIGENT AWARENESS
One Platform Series, Three Levels of Mission Capability
01

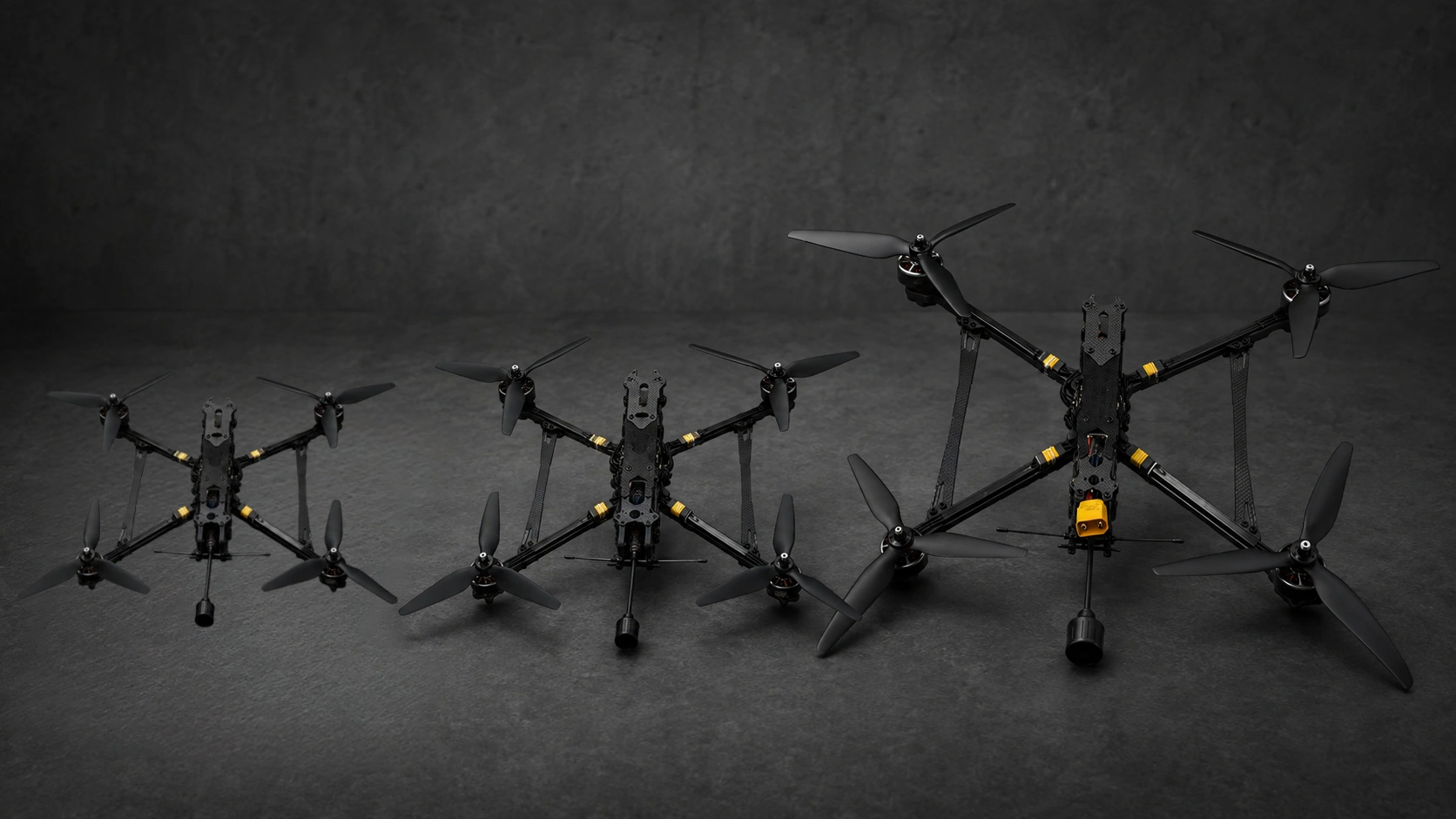

Scalable Airframe Family

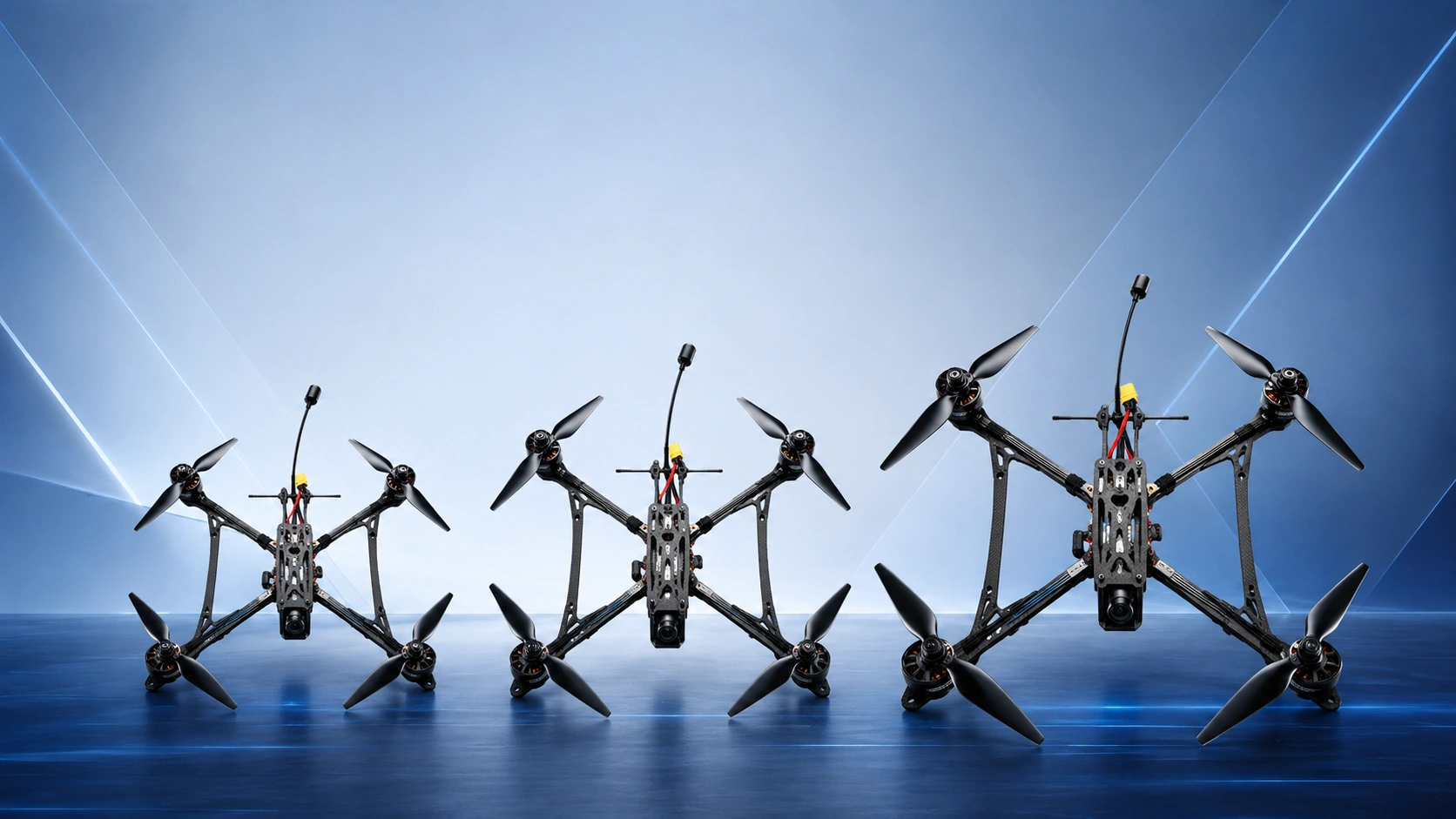

The 10-, 13-, and 15-inch configurations share a consistent platform concept while providing different weight, endurance, and payload profiles for varied deployment needs.
02
Payload-Matched Performance

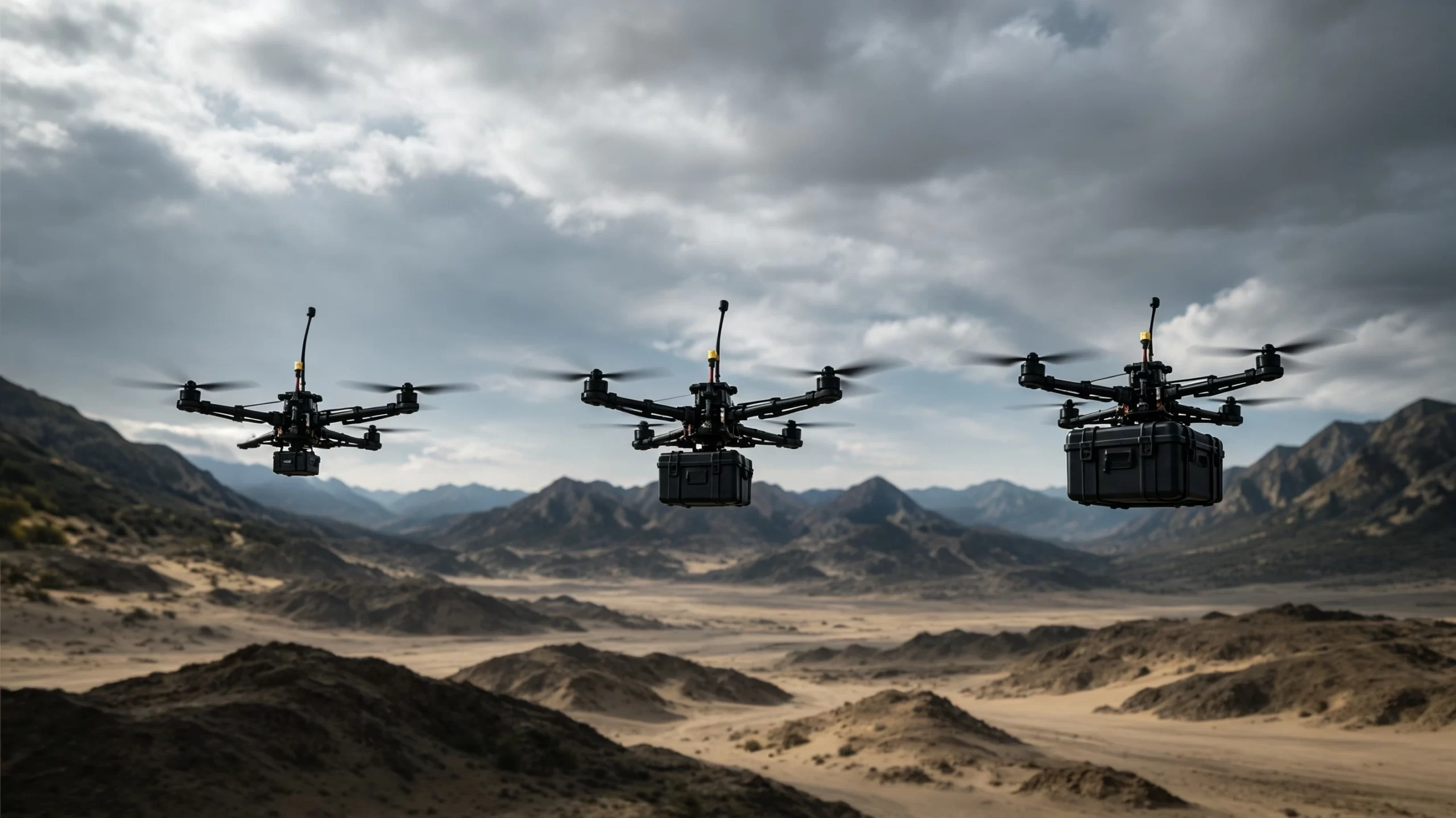

Maximum payload capacities of 4, 6, and 8 kg are paired with 30, 35, and 35 minutes of no-load endurance. All three airframes provide up to 8 minutes of full-load endurance.
03
Wide-Angle FPV Imaging
A 480P / 1200TVL visible-light camera with a 165° wide field of view provides broad situational visibility and a responsive first-person control experience.
04
AI-Assisted Target Awareness
Falcon S and Falcon P integrate AI recognition, locking, and tracking to support faster target identification and more stable visual continuity. Falcon B retains a streamlined direct-control configuration.
05
Thermal and Anti-Interference Options

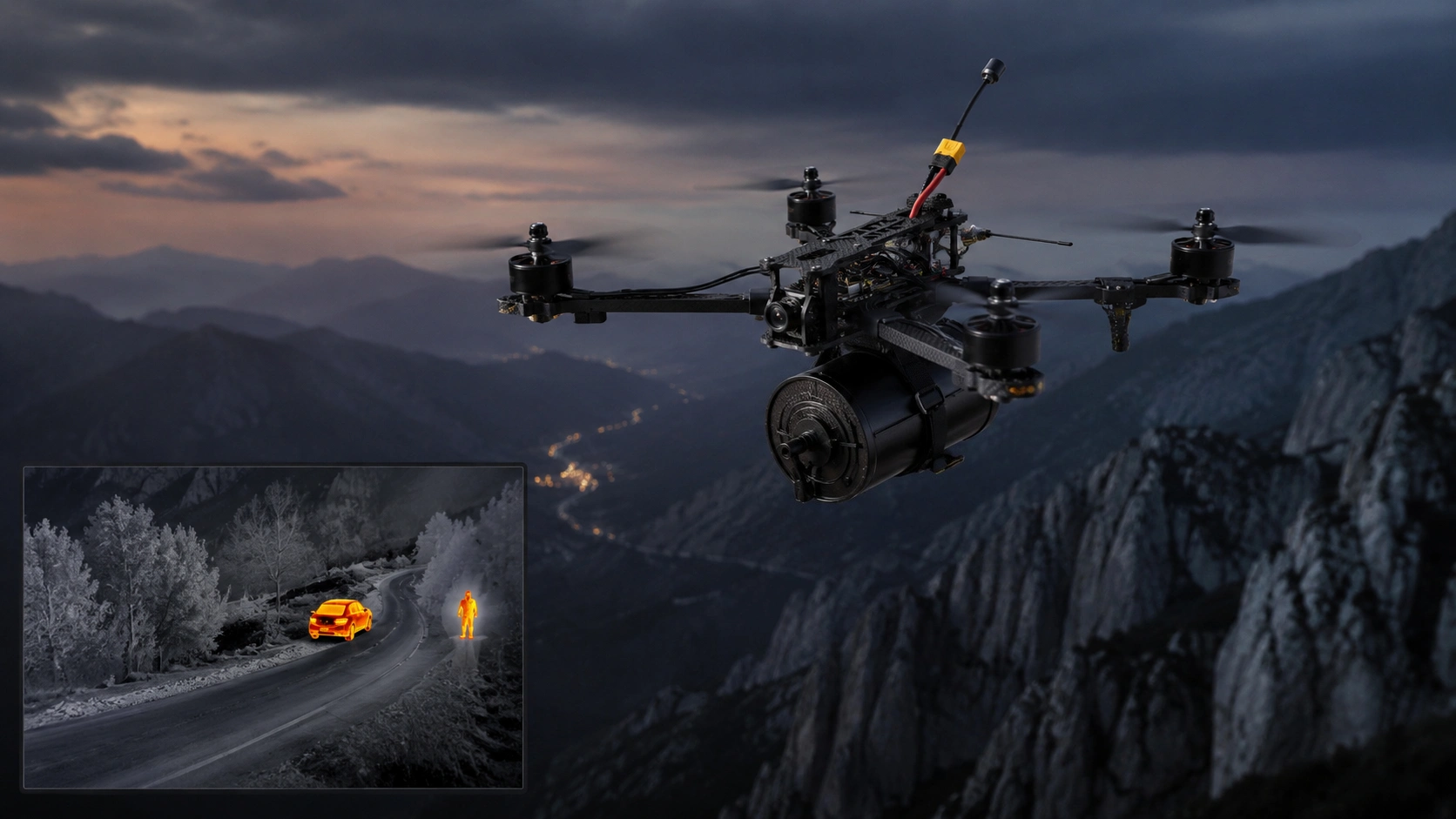

Falcon P adds a 640×512 thermal camera for low-light and night observation. An optional fiber-optic datalink is available for enhanced transmission stability and resistance to interference.
Technical Specs
PLATFORM SPECIFICATIONS
Falcon B |
Falcon S |
Falcon P |
|
| Frame Size | 10/13/15-inch | 10/13/15-inch | 10/13/15-inch |
| Frame Weight | 900/2050/2500 g | 900/2050/2500 g | 900/2050/2500 g |
| Propeller Size | 1050/1310/1507 mm | 1050/1310/1507 mm | 1050/1310/1507 mm |
| Max Speed | 35 m/s | 35 m/s | 35 m/s |
| Max Payload | 4/6/8 kg | 4/6/8 kg | 4/6/8 kg |
| No-load Endurance | 30/35/35 min | 30/35/35 min | 30/35/35 min |
| Full-load Endurance | 8 min | 8 min | 8min |
| Operating Temperature | -10°C~+40°C | -10°C~+40°C | -10°C~+40°C |
| Visible Light Camera | 480P/1200TVL
165° Wide Angle |
480P / 1200TVL
165° Wide Angle |
480P /1200TVL
165° Wide Angle |
| Thermal Camera | – | – | 640*512 |
| Al Capability | – | Al recognition, Al locking, Al tracking | Al recognition, Al locking, Al tracking |
| Other Options | √ Available in 10-inch, 13-inch, and 15-inch configurations
√ Optional fiber-optic datalink for enhanced stability and anti-interference |
||
