Product Brief // Raptor 12

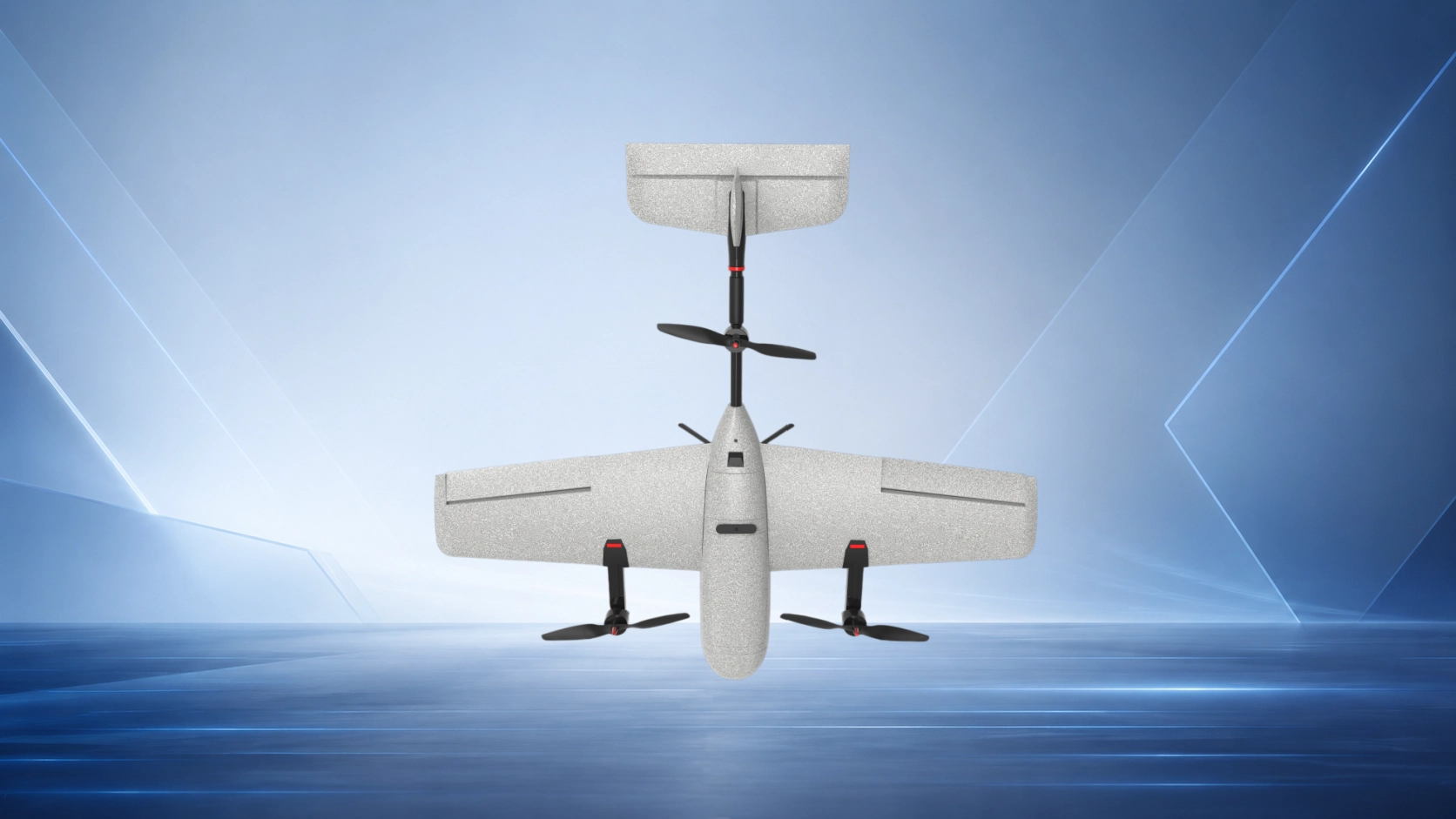

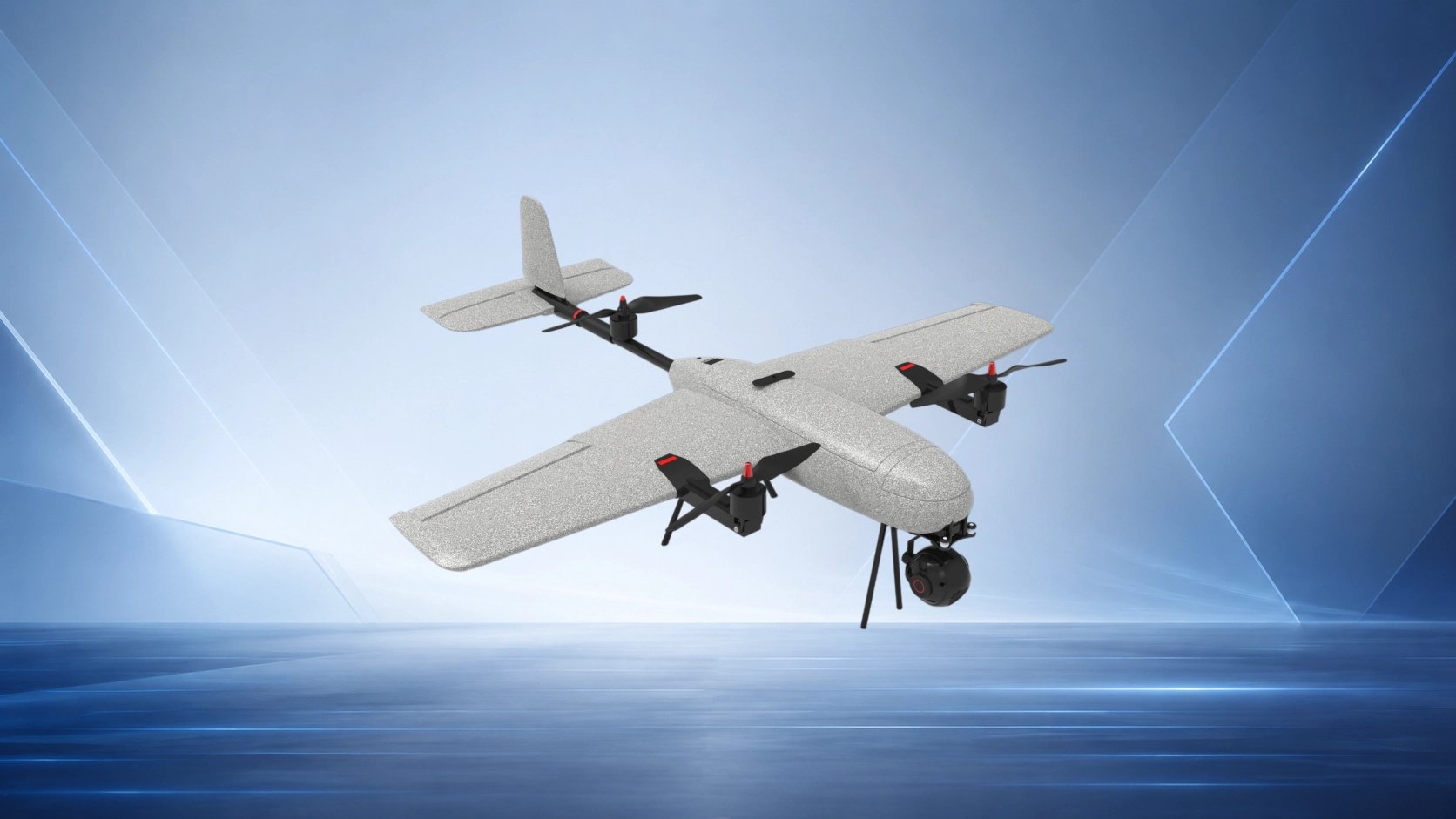

Raptor 12 VTOL Recon-Strike UAV
Runway-free launch, fixed-wing speed, and intelligent target awareness in one compact platform. Raptor 12 combines vertical takeoff and landing, up to 150 km/h maximum speed, a 3 kg payload capacity, AI-assisted recognition and tracking, and modular electro-optical pods for rapid reconnaissance and time-critical missions.
Product Overview
COMPACT COMPOSITE-WING VTOL BUILT FOR RECONNAISSANCE & STRIKE
Raptor 12 is a compact electric composite-wing VTOL UAV designed to move seamlessly between hover and efficient fixed-wing flight. It launches and recovers vertically from confined or unprepared sites, then transitions into high-speed cruise—delivering runway-free deployment, up to 150 km/h maximum speed, and up to 120 minutes of endurance in an empty configuration with an 8S 20,000 mAh battery, all within a portable 1.2 m wingspan platform.
With a 3 kg payload capacity, onboard AI-assisted recognition, locking, and tracking, and three optional stabilized electro-optical pods—visible-light, visible-light plus thermal imaging, and visible-light plus thermal imaging plus laser rangefinding—Raptor 12 adapts from wide-area reconnaissance to target tracking and time-critical strike missions. Quick-plug modular assembly, portable transport, optional anti-interference positioning, and an image-and-data datalink with up to 30 km range support rapid field deployment in complex environments.
Key Features
RUNWAY-FREE MOBILITY INTELLIGENT MISSION PERFORMANCE

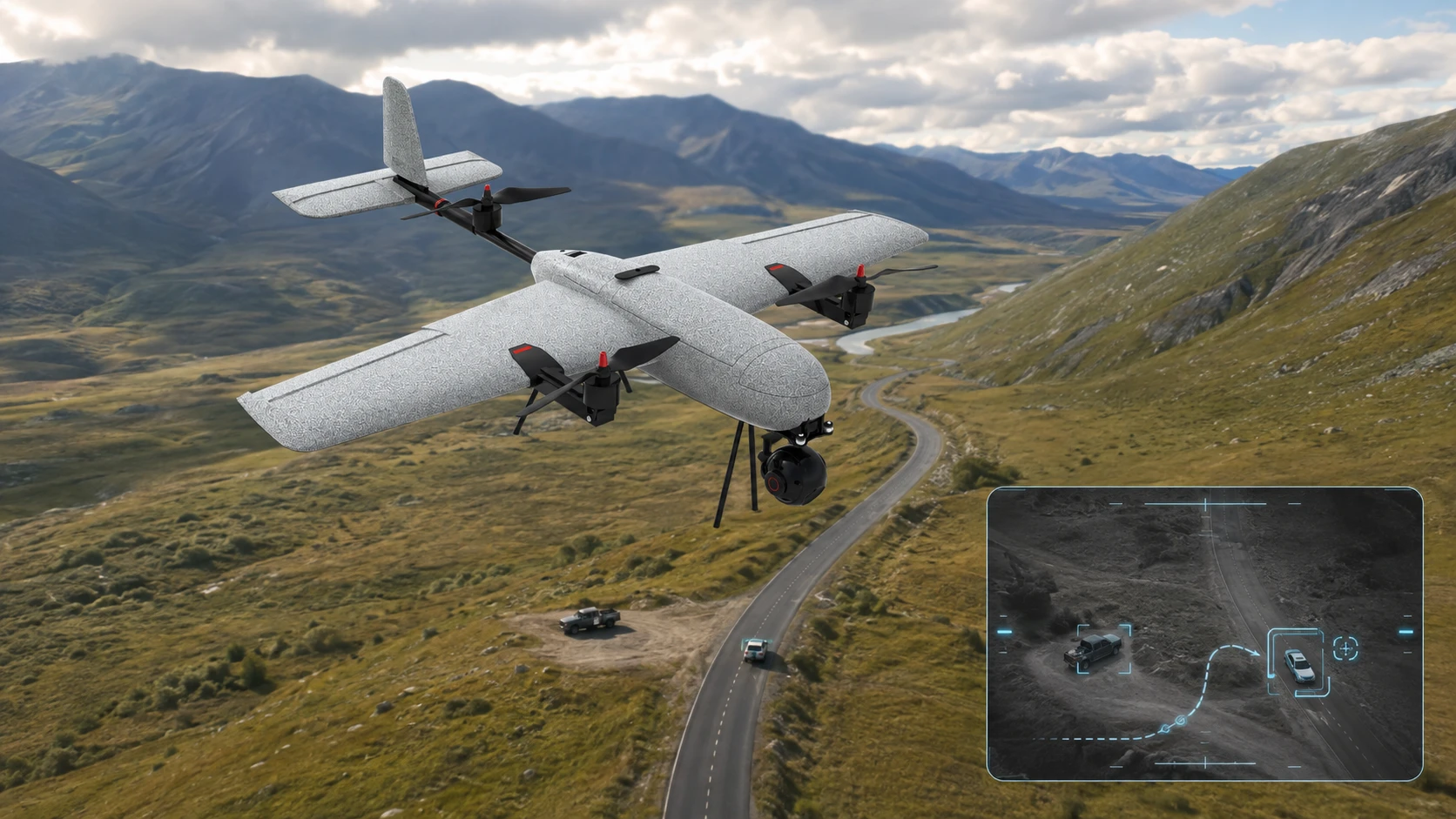

AI-Assisted Target Awareness
Onboard AI supports recognition, locking, and tracking of fixed and moving targets, maintaining visual continuity across dynamic missions.
Compact 3 kg Payload Platform
A 1.2 m wingspan airframe carries up to 3 kg, providing a strong payload-to-size ratio for electro-optical and mission equipment.
150 km/h Speed, Extended Endurance
Cruise at 55–100 km/h, reach up to 150 km/h, and achieve up to 120 minutes of empty-configuration endurance or 30 minutes at full payload.
Core Functions
FROM VERTICAL LIFT TO INTELLIGENT MISSION EXECUTION
Integrated Mobility, Sensing, Payload, and Deployment Capabilities
01

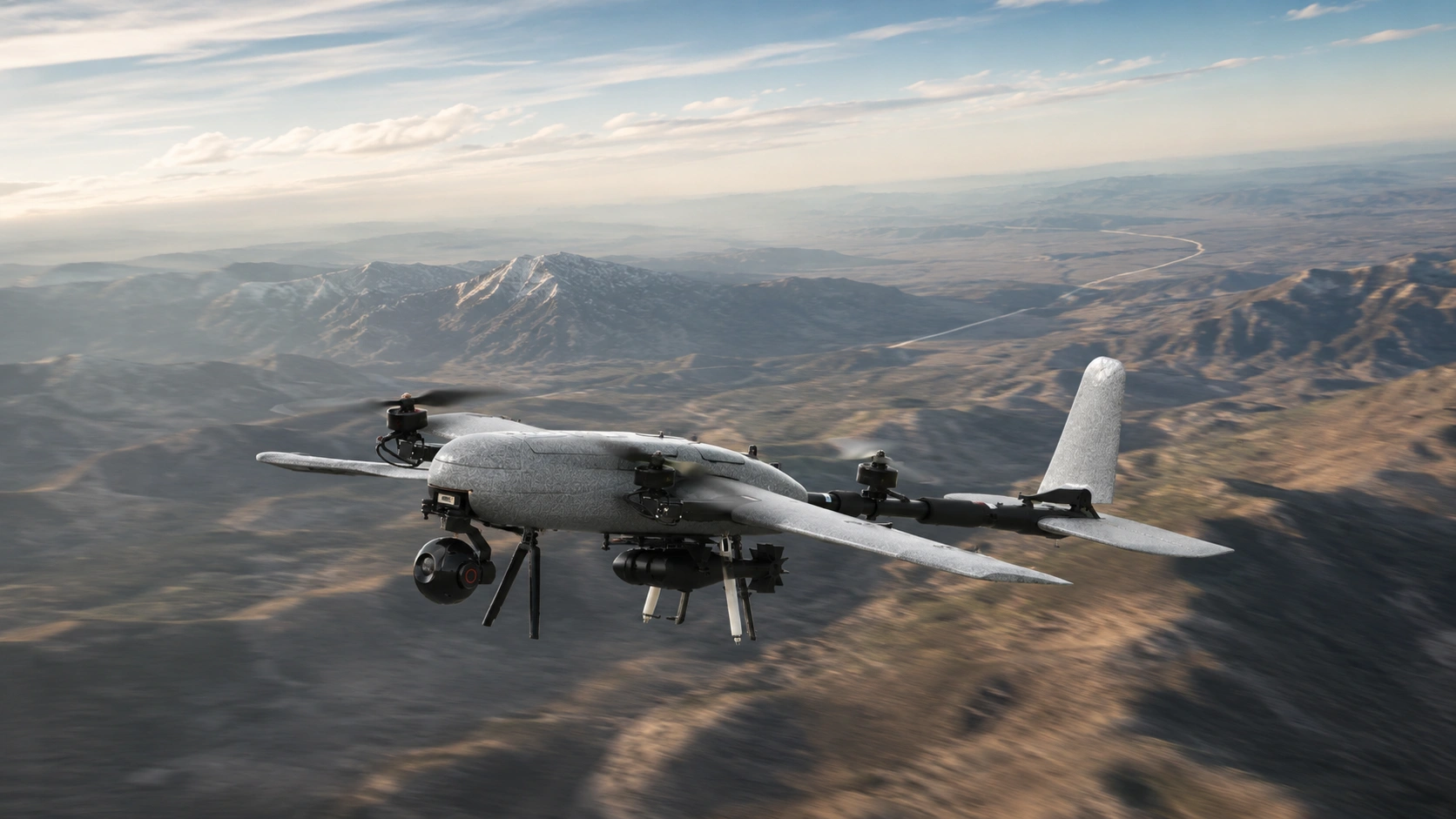

VTOL & Fixed-Wing Transition
Launch and recover vertically from confined or unprepared sites, then switch to fixed-wing cruise for efficient forward flight. The aircraft can return to hover when low-speed observation or precise positioning is required.
02

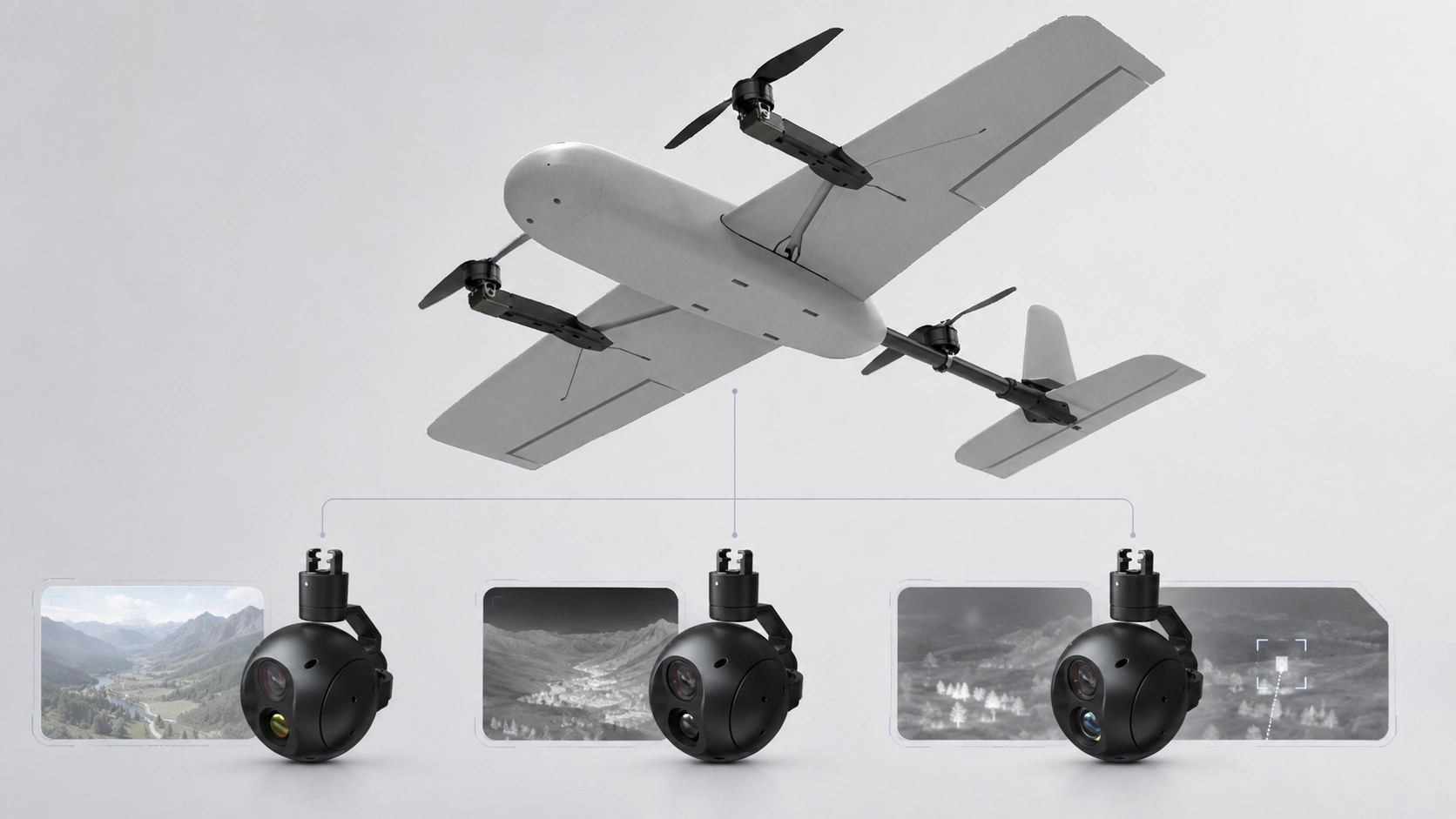

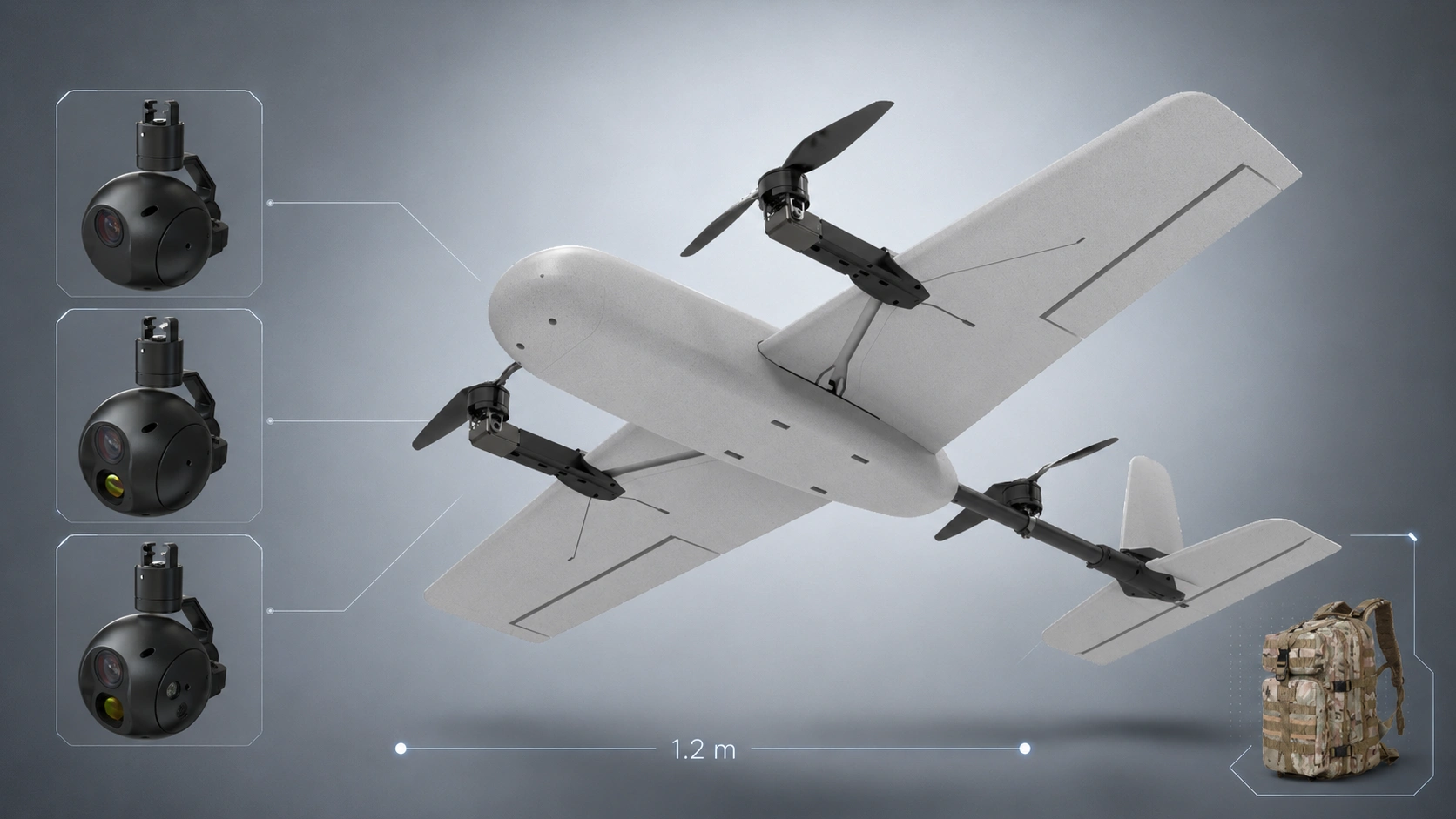

Three Stabilized EO Pod Options
Configure the platform with a visible-light pod, a visible-light + thermal pod, or a visible-light + thermal + laser rangefinder pod. The modular sensor architecture supports day/night observation, target tracking, and range measurement according to mission needs.
03
AI Recognition, Locking & Tracking
An onboard AI acceleration unit supports recognition, locking, and continuous tracking of fixed and moving targets, reducing operator workload and shortening the detection-to-decision cycle.
04
High Payload-to-Size Ratio
The compact 1.2 m wingspan airframe supports up to 3 kg of payload, enabling electro-optical sensors and configurable mission payloads while retaining portability and rapid deployment.
05

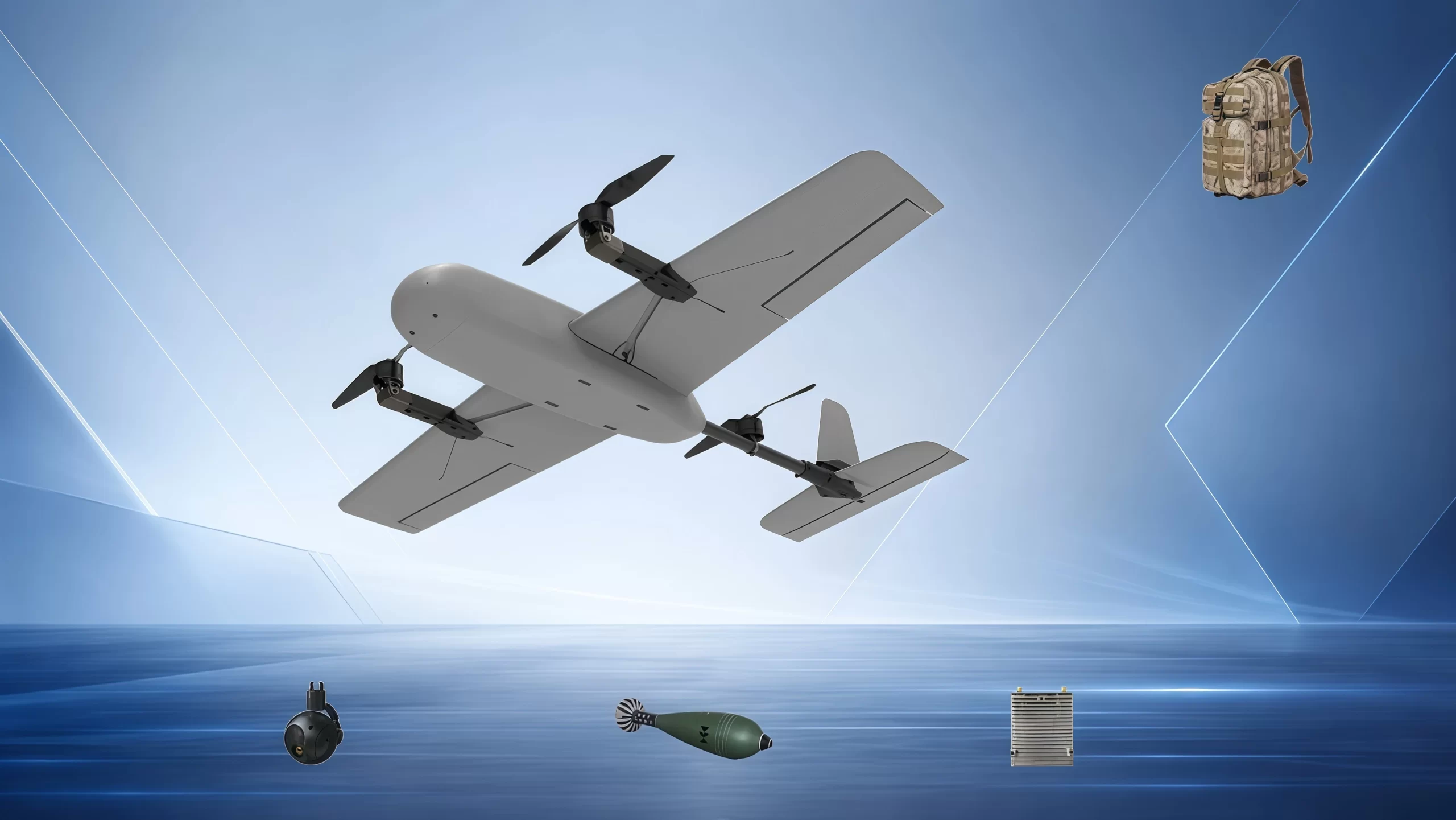

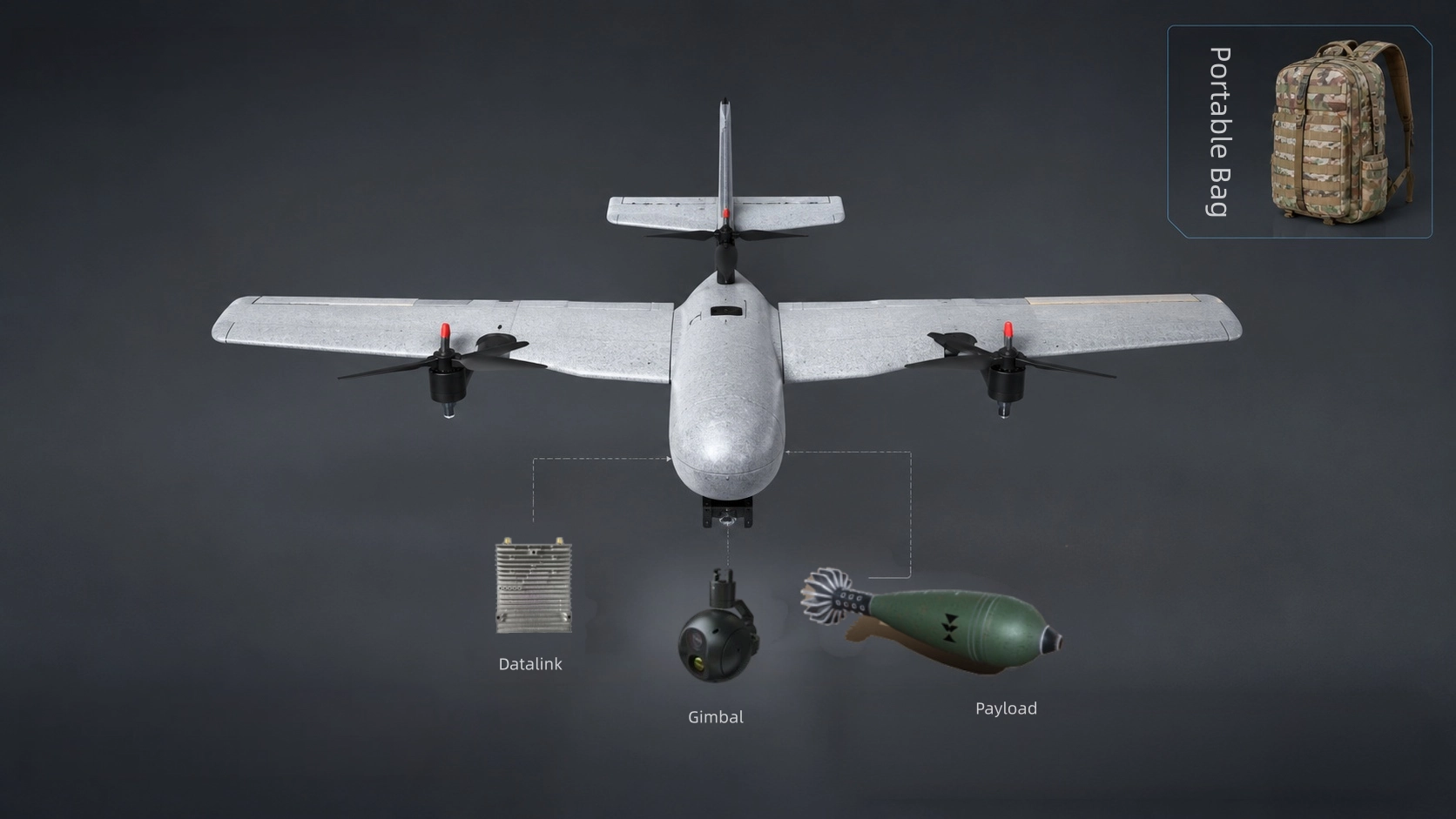

Resilient Links & Rapid Field Setup
An optional image-and-data datalink provides up to 30 km transmission range, while configurable anti-interference positioning improves operational resilience. Quick-plug modular assembly and a portable folded package simplify transport and field setup.
Technical Specs
AIRCRAFT PERFORMANCE & PAYLOAD OPTIONS
Aircraft |
|
| Wingspan | 1,200 mm |
| Fuselage Length | 1,090 mm |
| Power System | Electric |
| Takeoff Mode | VTOL (Vertical Take-off and Landing) |
| Power Supply | Lithium Battery |
| Cruise Speed | 55~100 km/h |
| Max Speed | 150 km/h |
| Max Takeoff Altitude | 4,000 m |
| Endurance | 120 min (no-load); 30 min (full-load) |
| Max Payload | 3 kg |
| No-load Takeoff Weight | 4 kg (without gimbal) |
| Max Takeoff Weight | 7 kg |
| Wind Resistance |
Beaufort Force 6 |
| Electro-Optical Pod I (Optional) | Visible-light (0.46 kg) |
| Electro-Optical Pod II (Optional) | Visible-light + Infrared (0.76 kg) |
| Electro-Optical Pod III (Optional) | Visible-light + Infrared + Laser (0.82 kg) |
| Data Link | 30 km transmission range for video & data |
Electro-Optical Pod Ⅰ |
Electro-Optical Pod Ⅱ |
Electro-Optical Pod Ⅲ |
|
Hardware |
|||
| Working Voltage | 12V | 12V | 12V |
| Operating Temperature | -20°C – +60°C | -20°C – +60°C | -20°C – +60°C |
Gimbal |
|||
| Angle Scope | Yaw: ±360°*N Pitch: -120° – 30° Roll: ±70° |
Yaw: ±360°*N Pitch: -120° – 30° Roll: ±70° |
Yaw: ±360°*N Pitch: -120° – 30° Roll: ±55° |
Camera |
|||
| Imager Sensor | 1/2.8″ | 1/2.8″ | 1/2.8″ |
| Effective Pixels | 2M | 2M | 2M |
| Resolution | 1920×1080 | 1920×1080 | 1920×1080 |
| Optical Zoom | 10× | 10× | 10× |
| Hybrid Zoom | 40× | 40× | 40× |
| Focal Length | 4.9 – 49.0 mm (35mm equivalent: 35 – 353 mm) | 4.9 – 49.0 mm (35mm equivalent: 35 – 353 mm) | 4.9 – 49.0 mm (35mm equivalent: 35 – 353 mm) |
| FOV H (°) | 7.2 – 66.6 | 7.2 – 66.6 | 7.2 – 66.6 |
IR Thermal Imager |
|||
| Focal Length | – | 13 mm | 25 mm |
| FOV | – | 32.9°×26.6° | 10°×7.9° |
| Detector Resolution | – | 640×512 | 640×512 |
| Pixel Pitch | – | 12 μm | 12 μm |
| Thermal Sensitivity (NETD) | – | ≤40 mK@F1.0 | – |
| Frame Rate | – | 30Hz | 50 Hz |
| Spectral Range | – | 8 – 14 μm | 8 – 14 μm |
| Digital Zoom | – | 1～8× | 8× |
Laser Rangefinder |
|||
| Range | – | – | 5~2000 m |
| Accuracy | – | – | ±1 m |
| Wavelength | – | – | 905 nm |
AI Tracker |
|||
| Target Types | Human and Vehicle | Human and Vehicle | Human and Vehicle |
| Min Target Size | 36×36 pixels | 36×36 pixels | 36×36 pixels |
| Recognition Accuracy | ≥90% | ≥90% | ≥90% |
| Computing Power | 1.0 TOPS | 1.0 TOPS | 1.0 TOPS |
Packing Information |
|||
| Weight | 460 g | 760 g | 820 g |
| Size | 103×147×88 mm | 118×88×145 mm | 119.6×100×164.2 mm |
