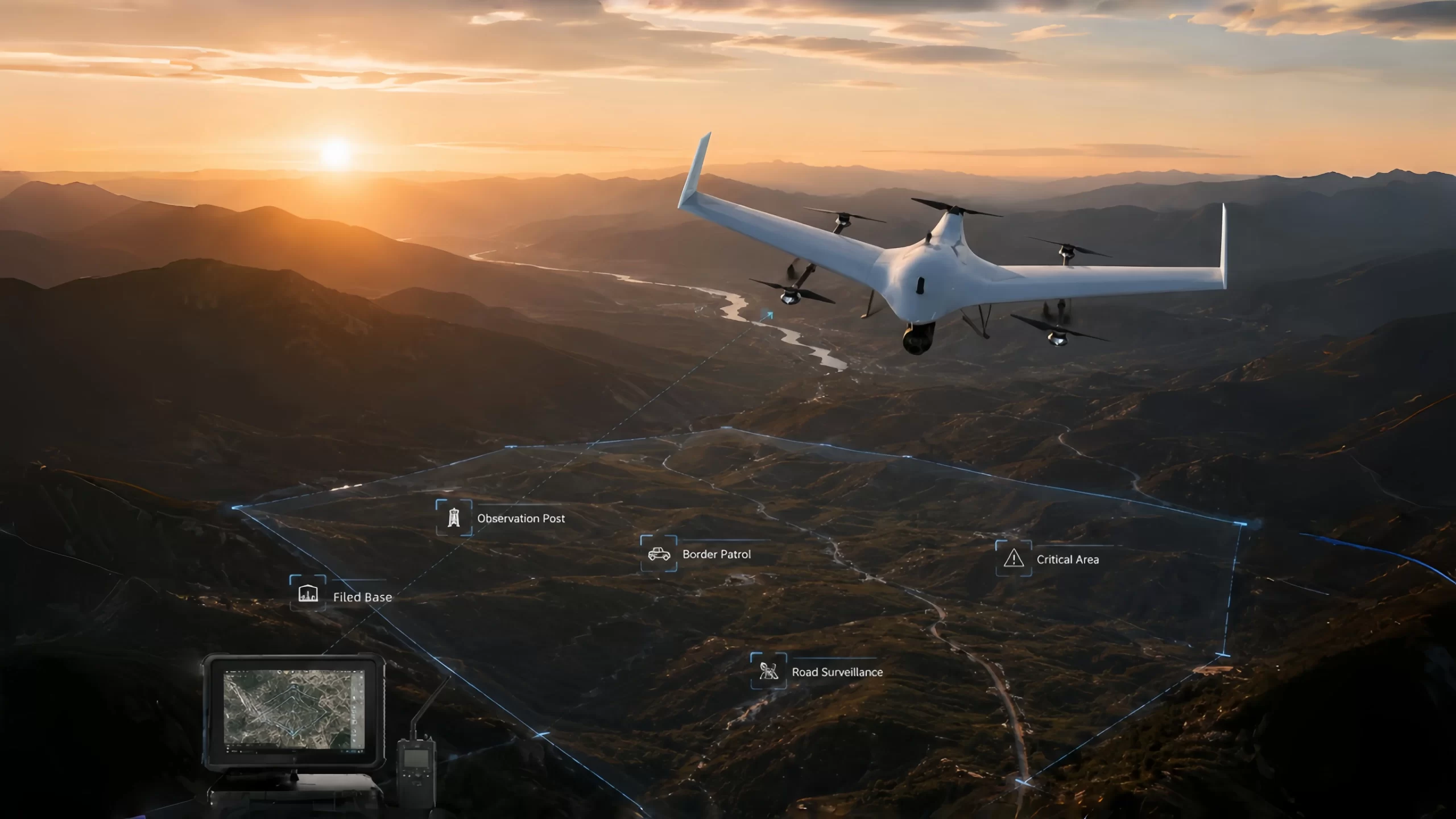

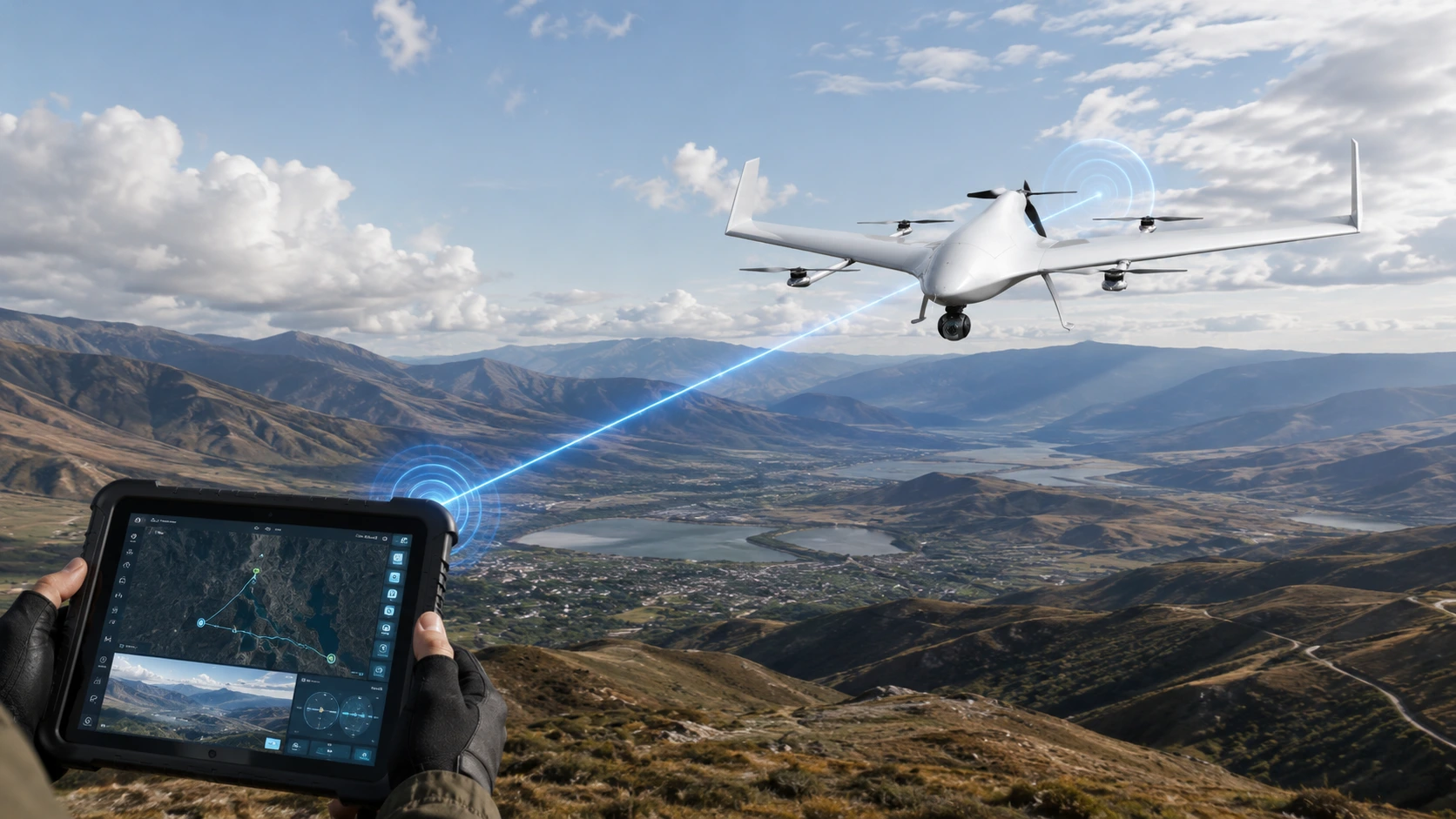

50 km Mid-Range Mission Reach
Maintain real-time video, data, and command connectivity over distances up to 50 km, extending operational reach beyond compact tactical platforms.
Product Brief // Raptor 25

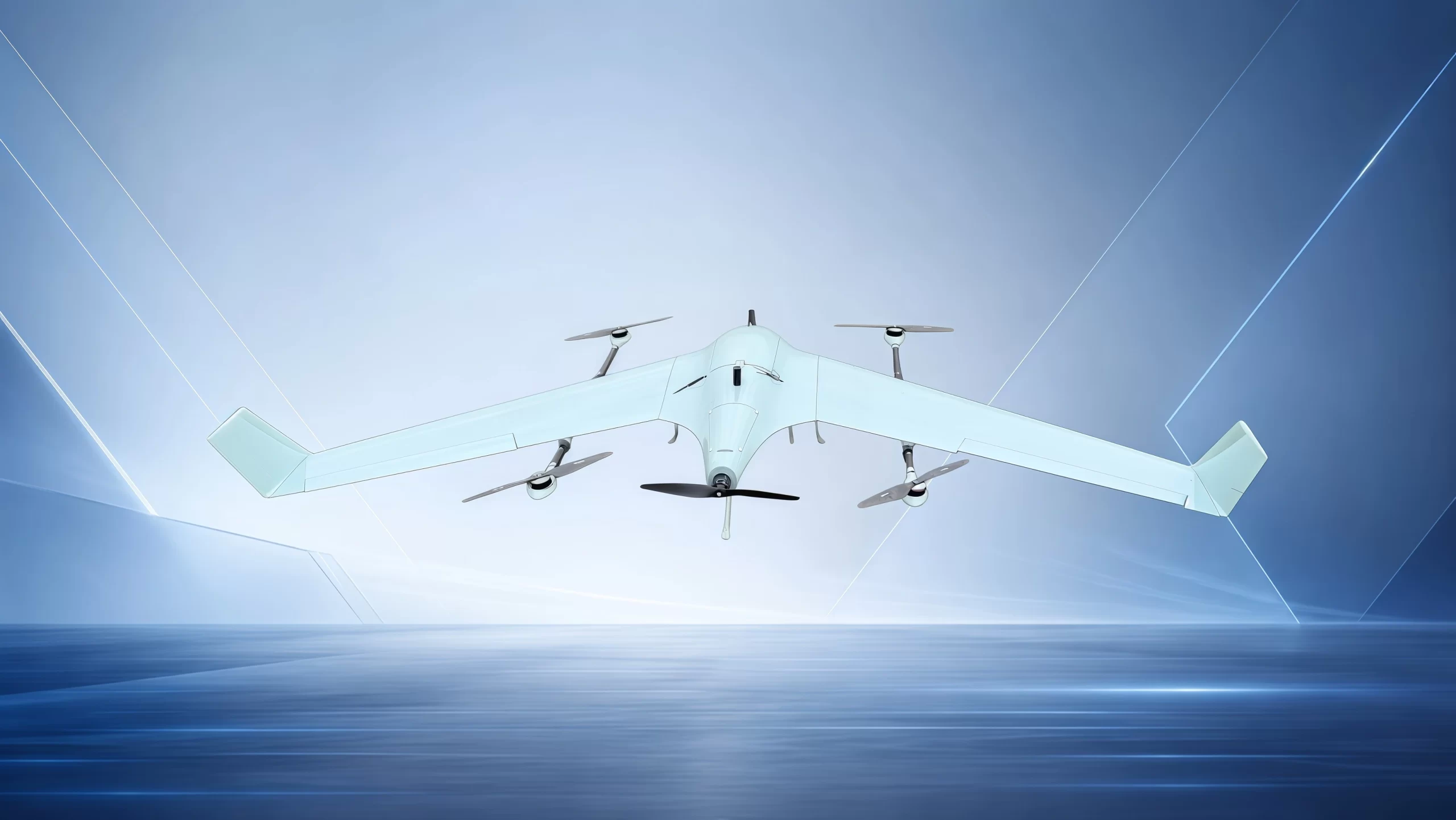

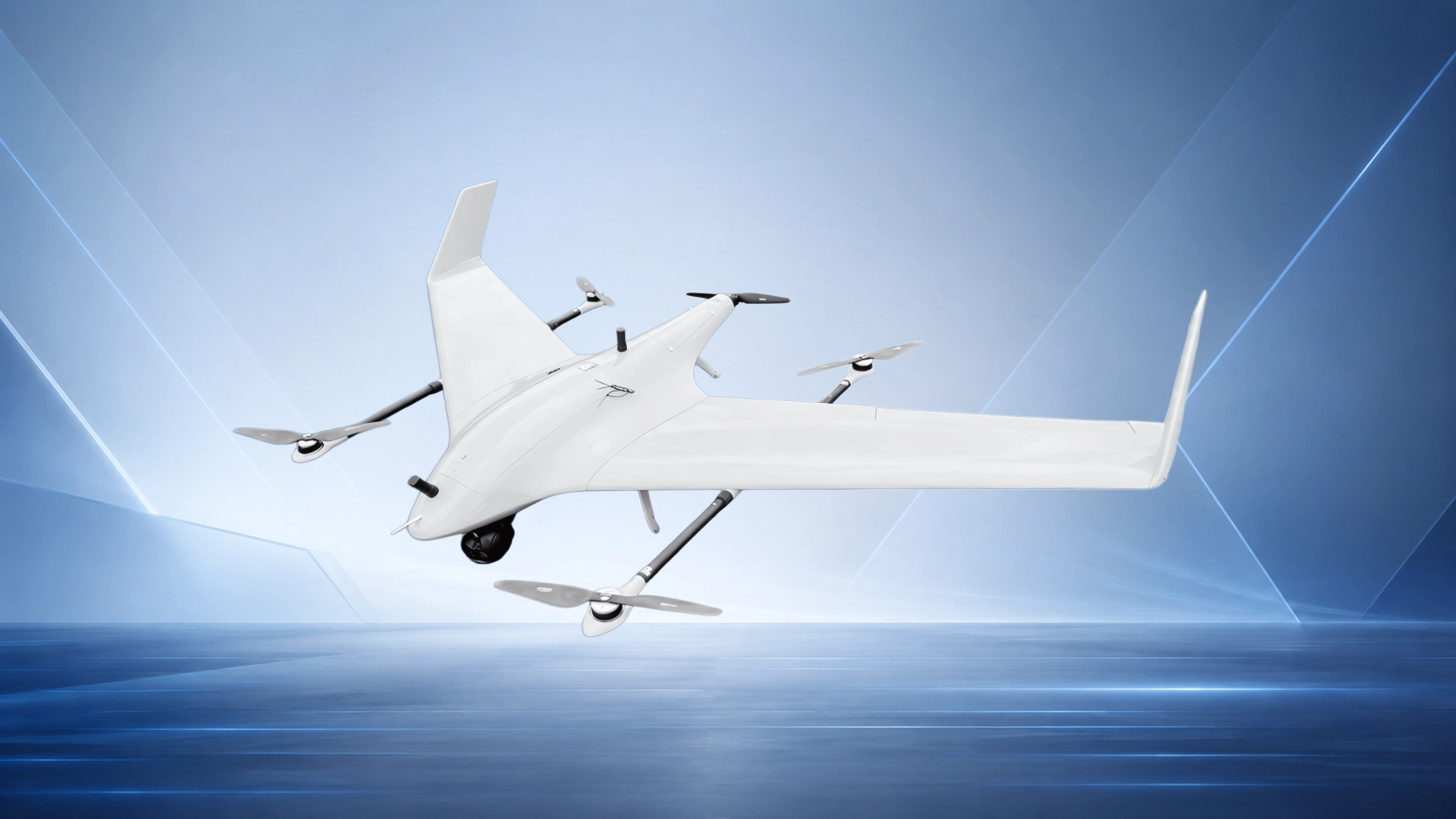

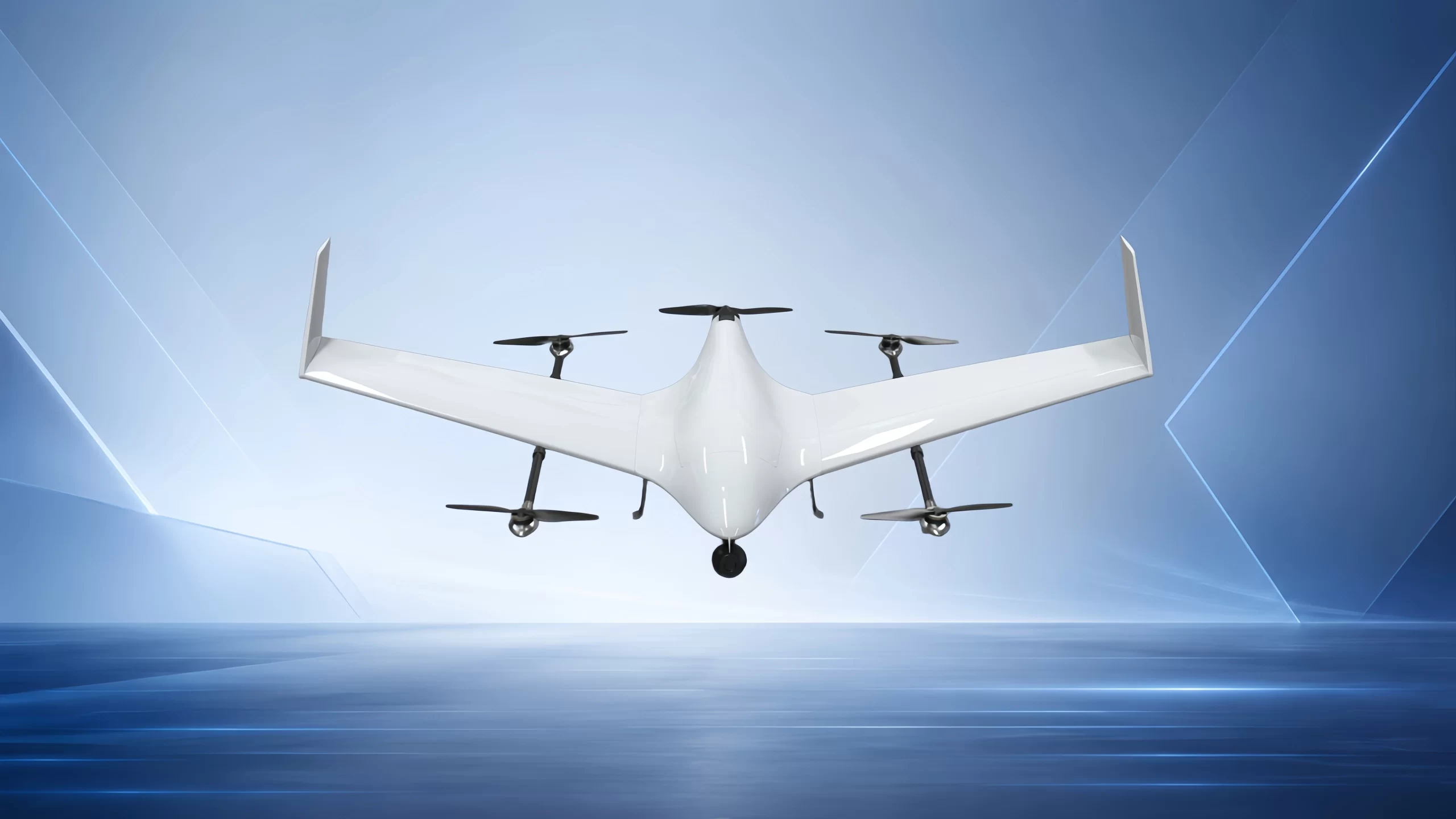

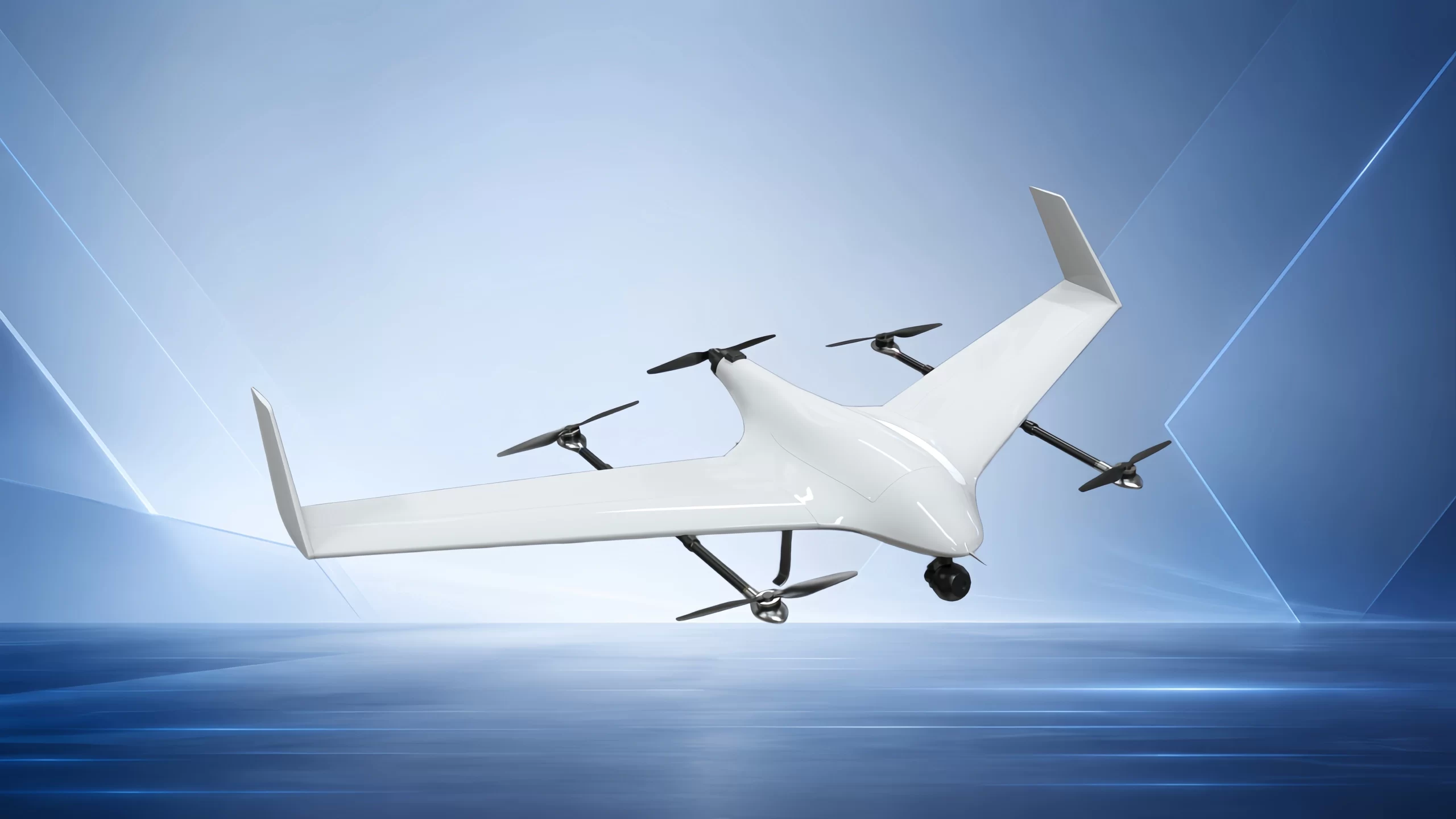

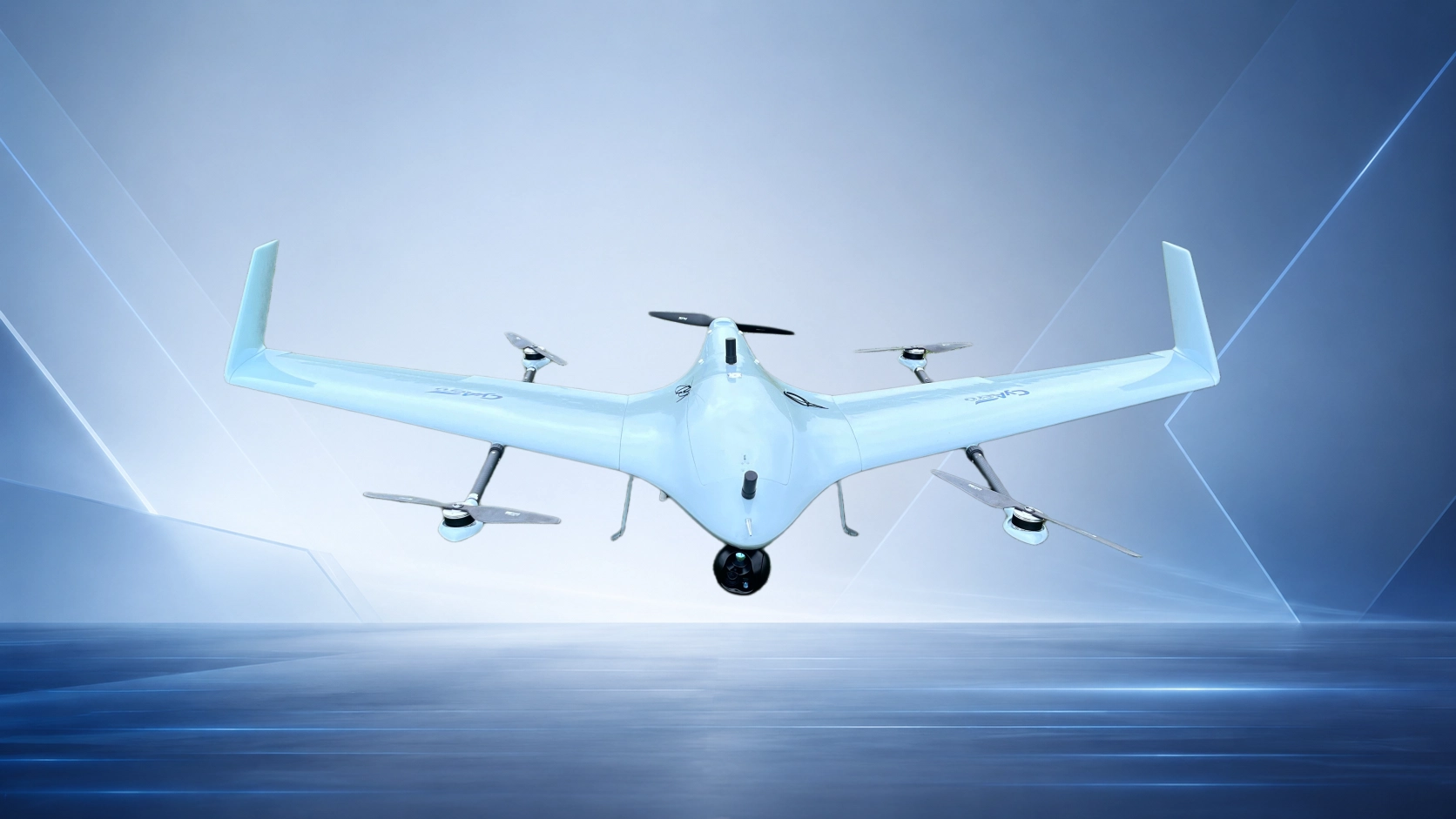

Raptor 25 Mid-Range VTOL UAV
Engineered as the performance balance point of the Raptor family, Raptor 25 combines a 50 km video-and-data link, 5 kg payload capacity, up to 35 minutes of full-load endurance, and a maximum speed of 150 km/h in a runway-free 2.5 m VTOL platform.
Product Overview
BALANCED MID-RANGE VTOL PLATFORM REACH, PAYLOAD & SPEED IN ONE
Raptor 25 is the balanced mid-range platform in the Raptor family, combining runway-free vertical deployment with efficient fixed-wing cruise. Its 2.5 m electric composite-wing airframe takes off and lands vertically from confined or unprepared sites, cruises efficiently at 75–90 km/h, and reaches up to 150 km/h when rapid repositioning is required.
A 50 km video-and-data link, 5 kg payload capacity, up to 35 minutes of full-load endurance, and up to 120 minutes of no-load endurance give Raptor 25 a practical balance of reach, carrying capability, and time on task. Three optional stabilized electro-optical pods—visible-light, visible-light plus infrared, and visible-light plus infrared plus laser rangefinder—combine with onboard AI acceleration, operation from takeoff altitudes up to 4,000 m, Beaufort Force 6 wind resistance, and portable transport for adaptable day/night multi-mission deployment.
Key Features
THE MID-RANGE BALANCE POINT REACH FARTHER. RESPOND FASTER.

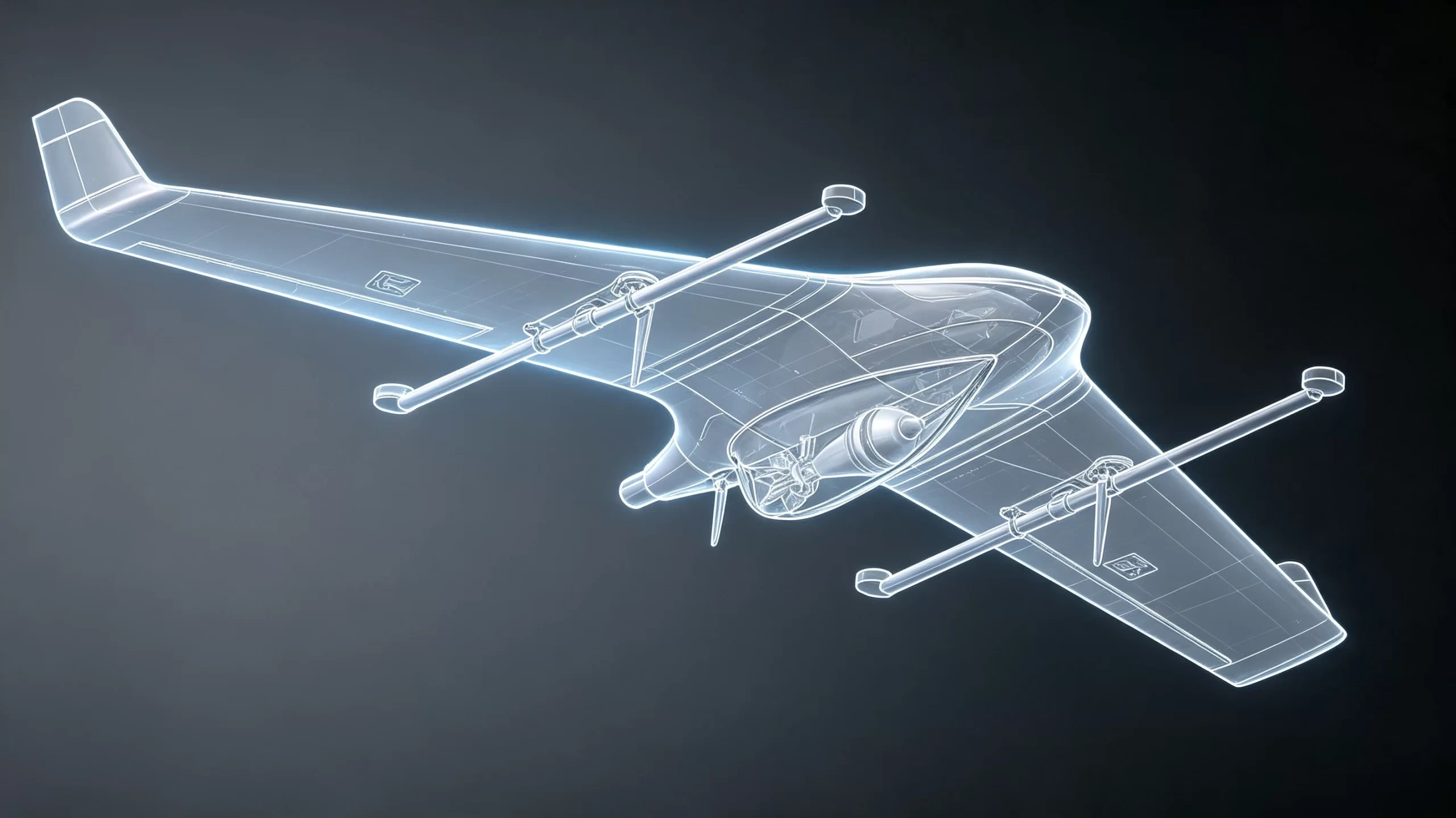

5 kg Payload in a 2.5 m Airframe
A 2.5 m composite-wing airframe carries up to 5 kg, providing useful integration capacity for larger sensors and configurable mission equipment.
Up to 120-Min Endurance
Extended flight time supports broader coverage, longer observation windows, and more sustained mission operations.

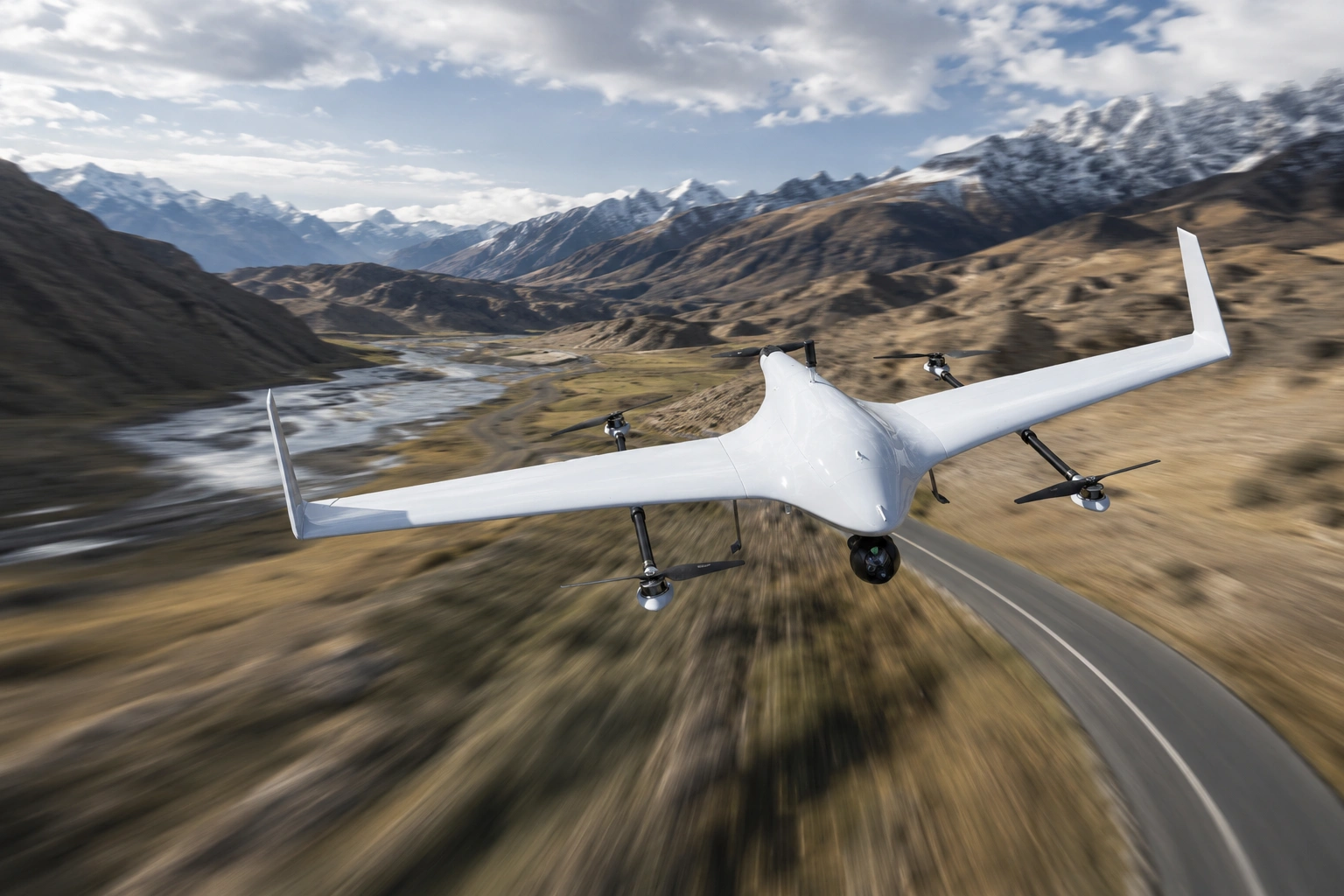

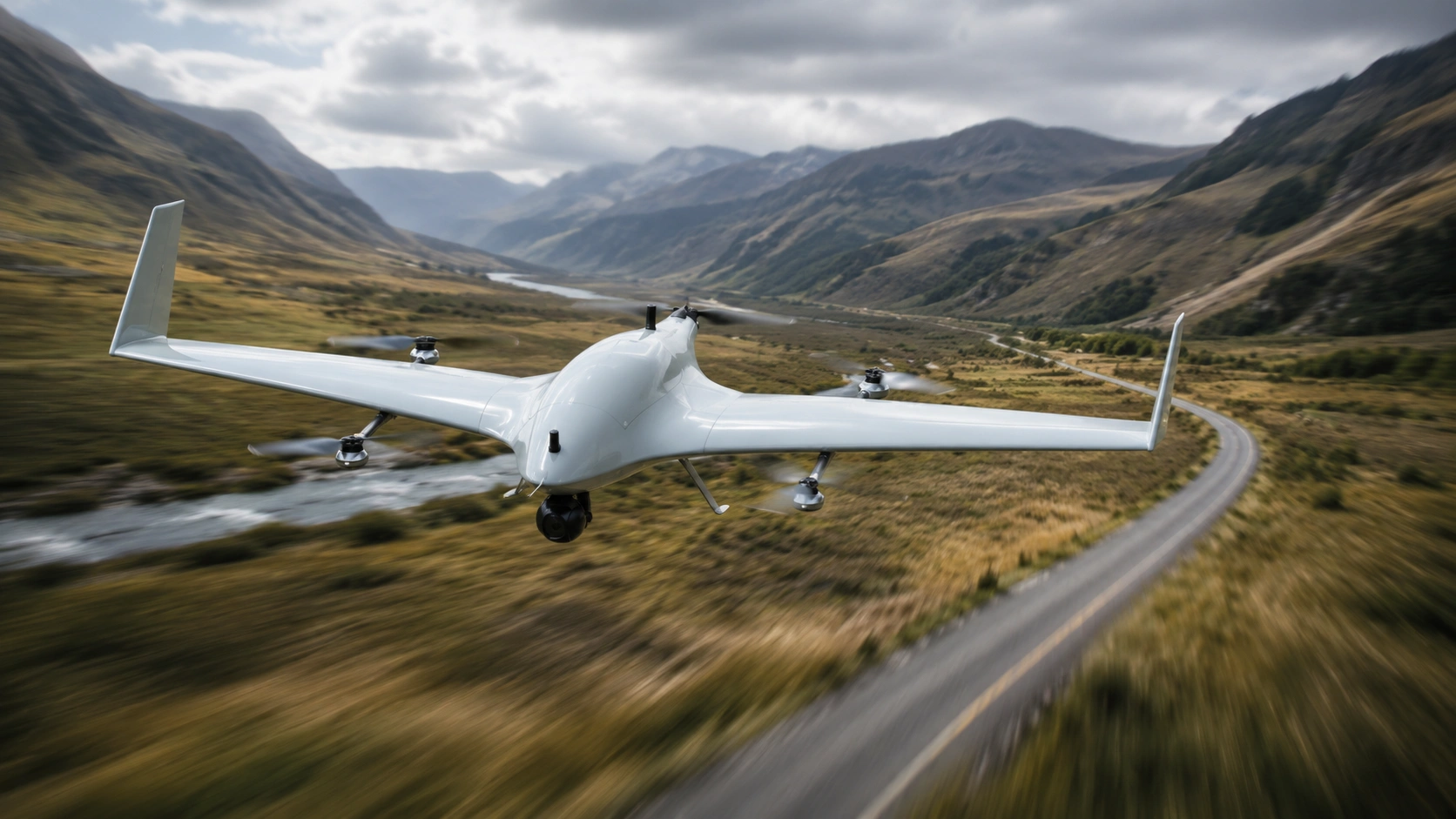

150 km/h Rapid Repositioning
Reach speeds of up to 150 km/h for faster transit between mission areas, rapid response, and efficient repositioning.
Core Functions
FROM MID-RANGE DEPLOYMENT TO ADAPTABLE MULTI-MISSION OPERATIONS
Balanced Mobility, Payload-Endurance Matching, Multi-Sensor Awareness, & Environmental Resilience
01

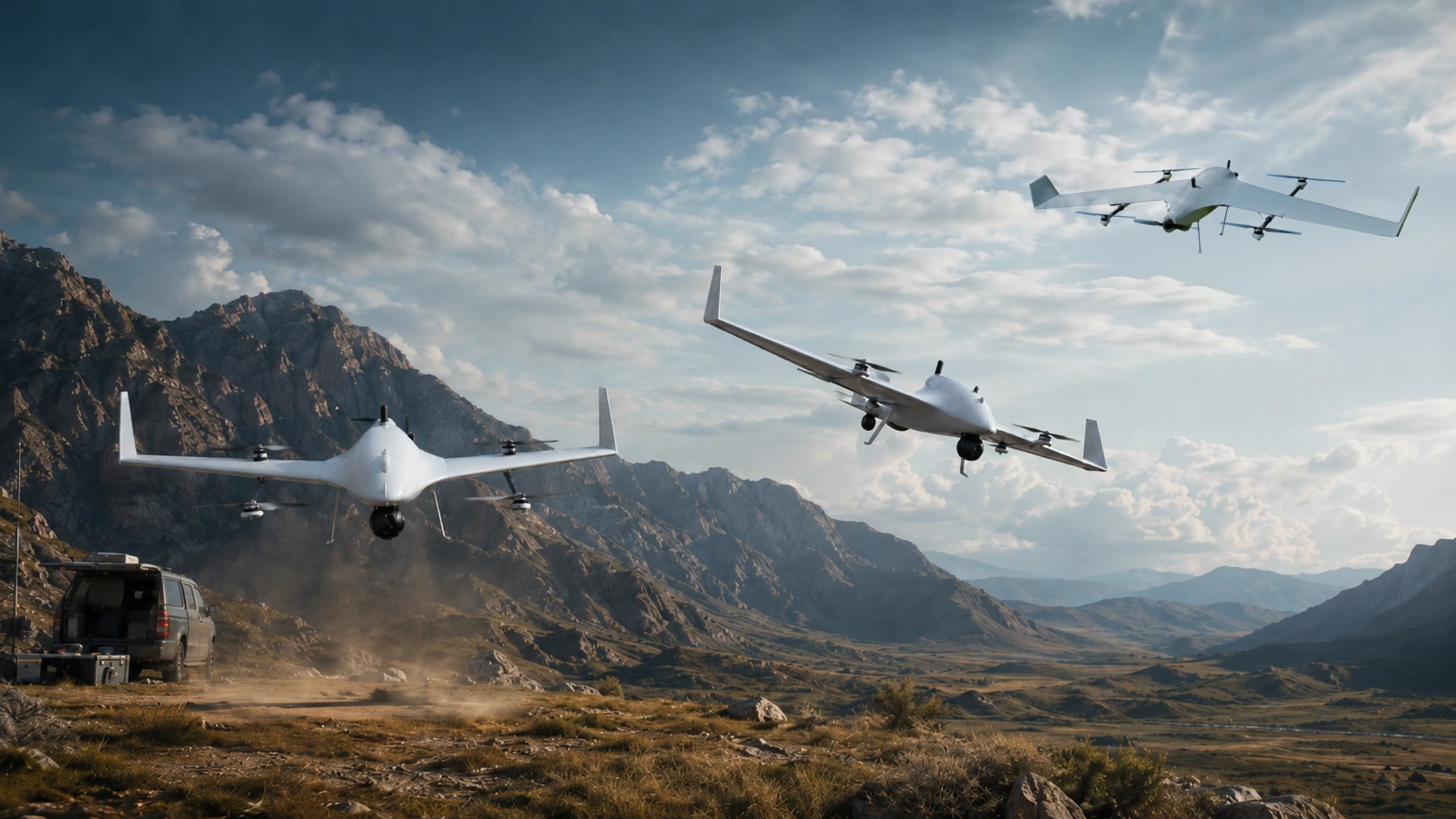

Runway-Free Mid-Range Deployment
Launch and recover vertically from confined or unprepared sites, then transition to efficient fixed-wing cruise for broader-area operations without runway dependence.
02
Payload-Endurance Matching

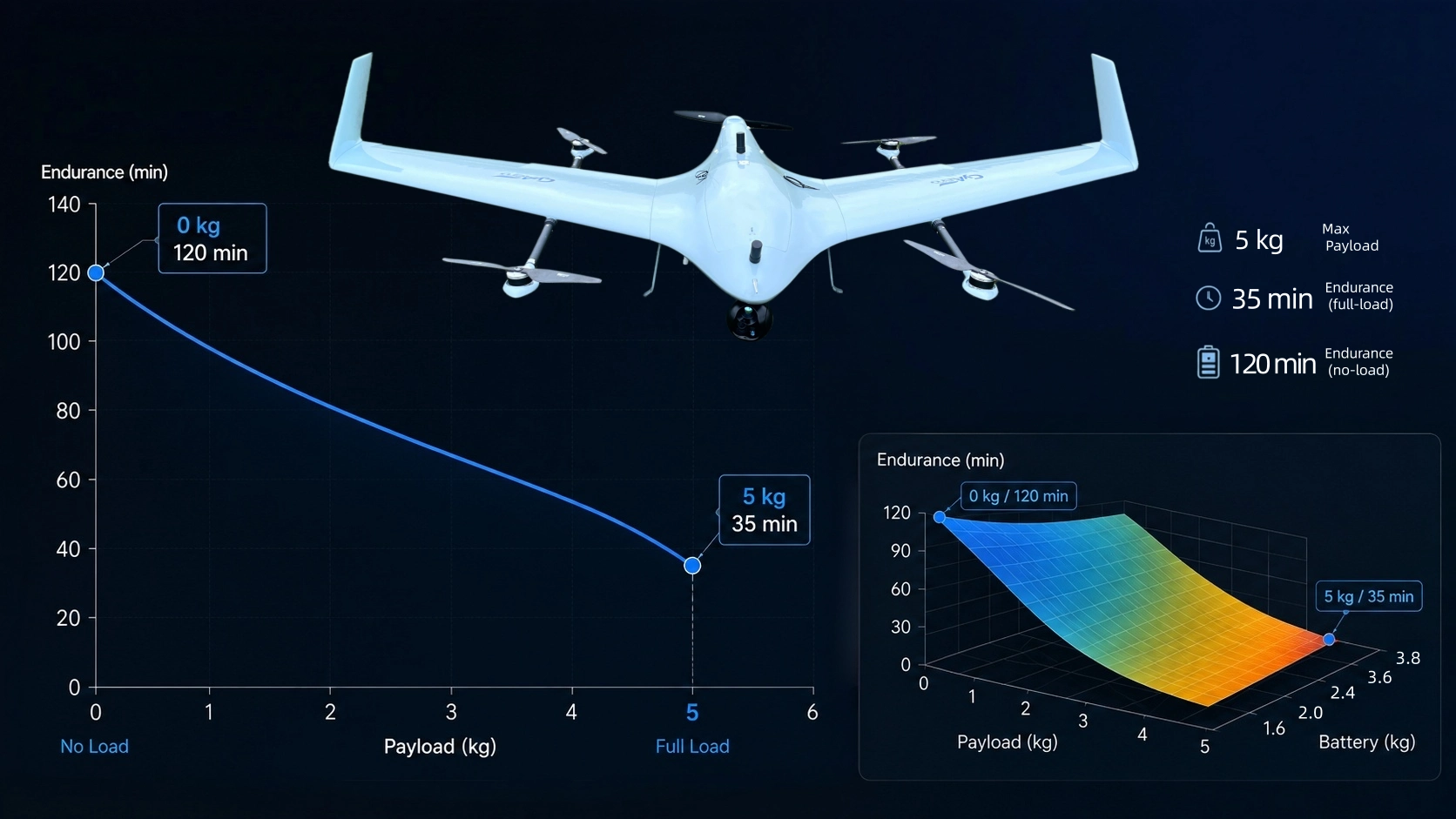

Carry up to 5 kg and remain airborne for up to 35 minutes at full load. Up to 120 minutes of no-load endurance allows the platform to be configured around the required balance of sensor weight, mission radius, and time on task.
03
High-Speed Fixed-Wing Response
Cruise at 75–90 km/h and accelerate up to 150 km/h for rapid transit, time-critical response, and efficient repositioning between mission areas.
04

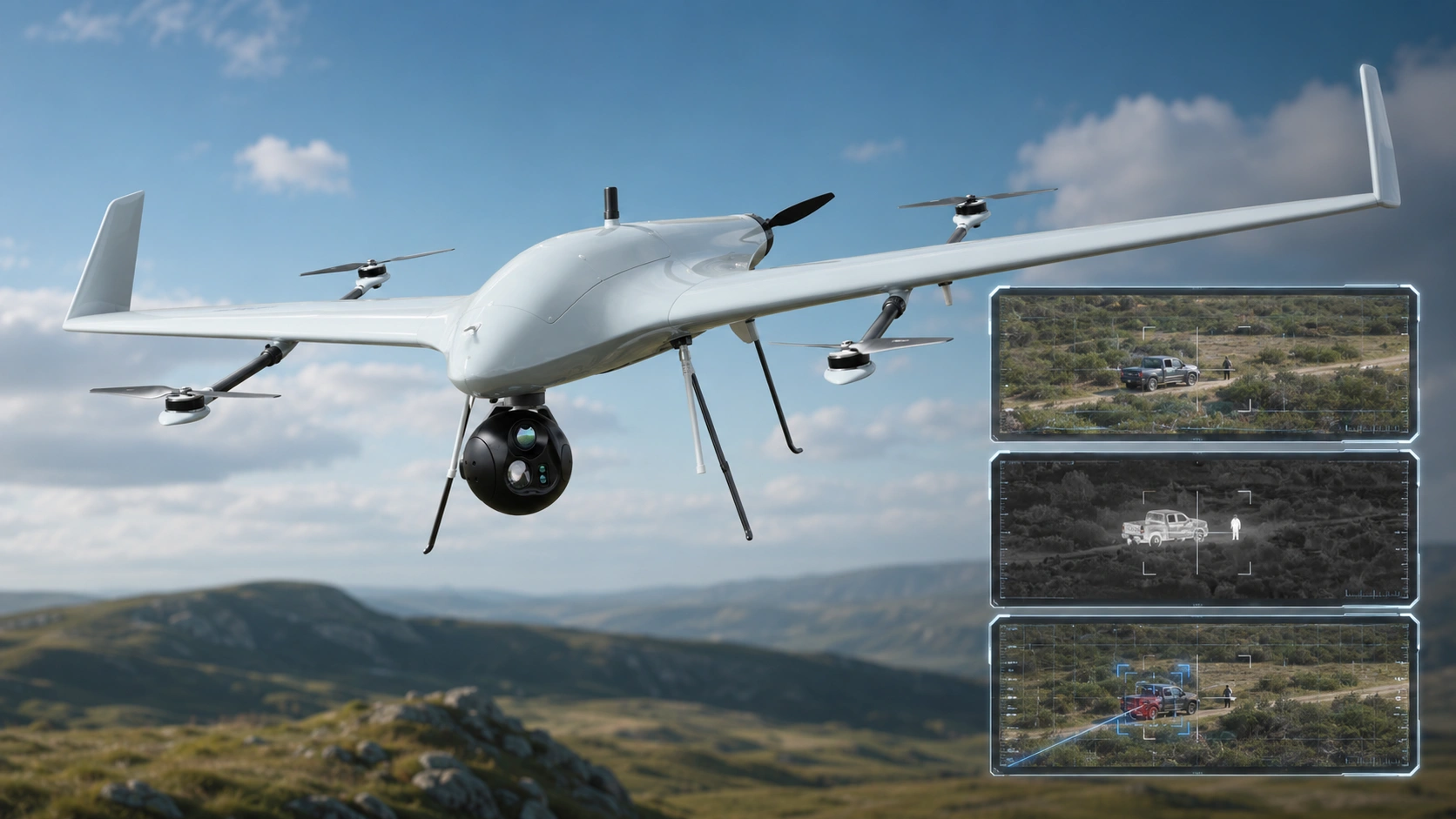

Stabilized Multi-Sensor & AI Awareness
Select visible-light, visible-light + infrared, or visible-light + infrared + laser rangefinder pods. Three-axis stabilization and an onboard AI acceleration unit support day/night observation, target tracking, and range measurement.
05

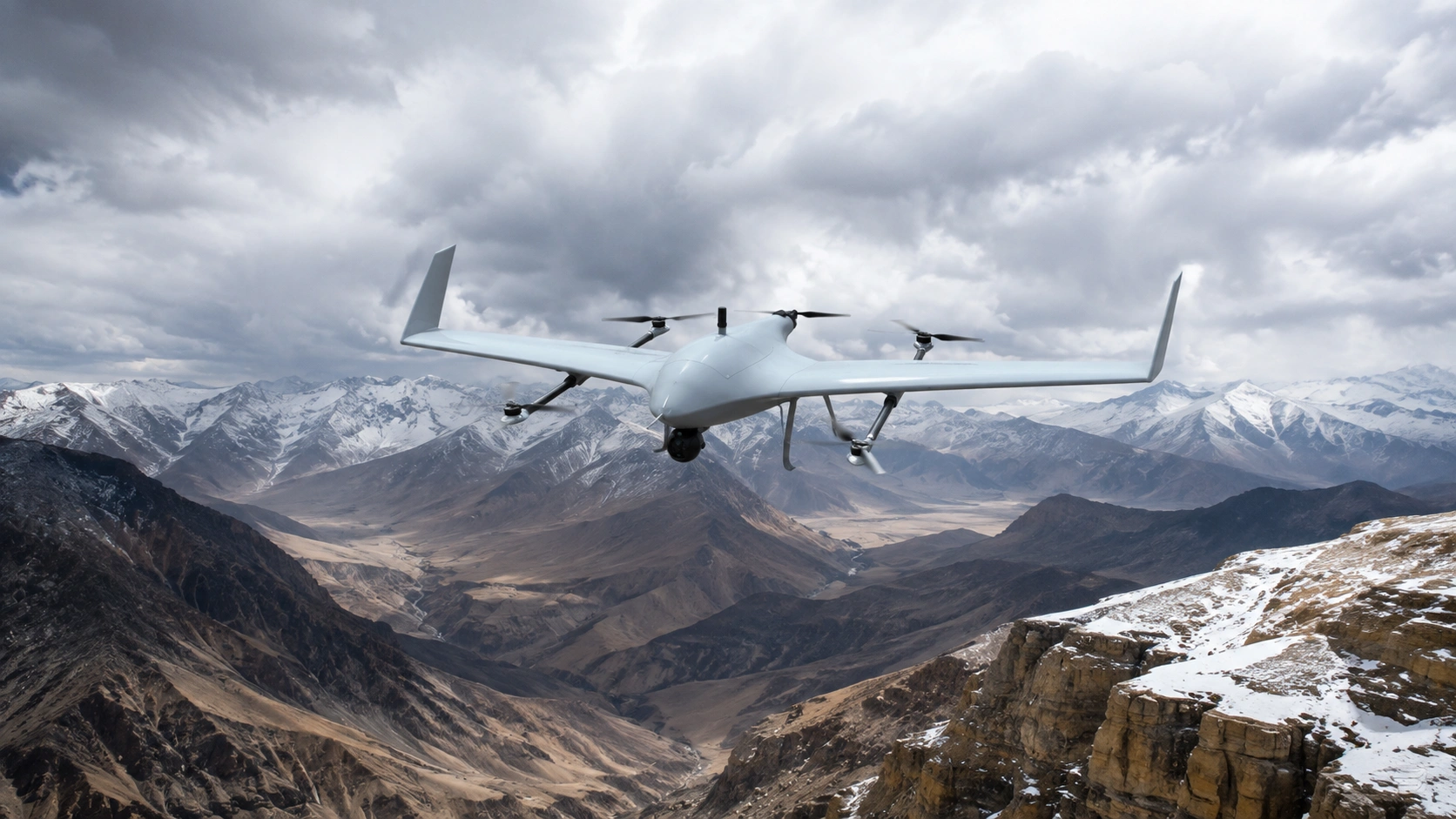

High-Altitude & Wind-Resilient Operation
Deploy from takeoff altitudes up to 4,000 m and operate in Beaufort Force 6 winds, supporting reliable use across elevated, exposed, and weather-variable terrain.
Technical Specs
AIRCRAFT PERFORMANCE & PAYLOAD OPTIONS
Aircraft |
|
| Wingspan | 2,500 mm |
| Fuselage Length | 1,500 mm |
| Power System | Electric |
| Takeoff Mode | VTOL (Vertical Take-off and Landing) |
| Power Supply | Lithium Battery |
| Cruise Speed | 75~90km/h |
| Max Speed | 150km/h |
| Max Takeoff Altitude | 4,000 m |
| Endurance | 120 min (no-load); 35 min (full-load) |
| Max Payload | 5 kg |
| No-load Takeoff Weight | 12.5 kg (without gimbal) |
| Max Takeoff Weight | 17.5 kg |
| Wind Resistance | Beaufort Force 6 |

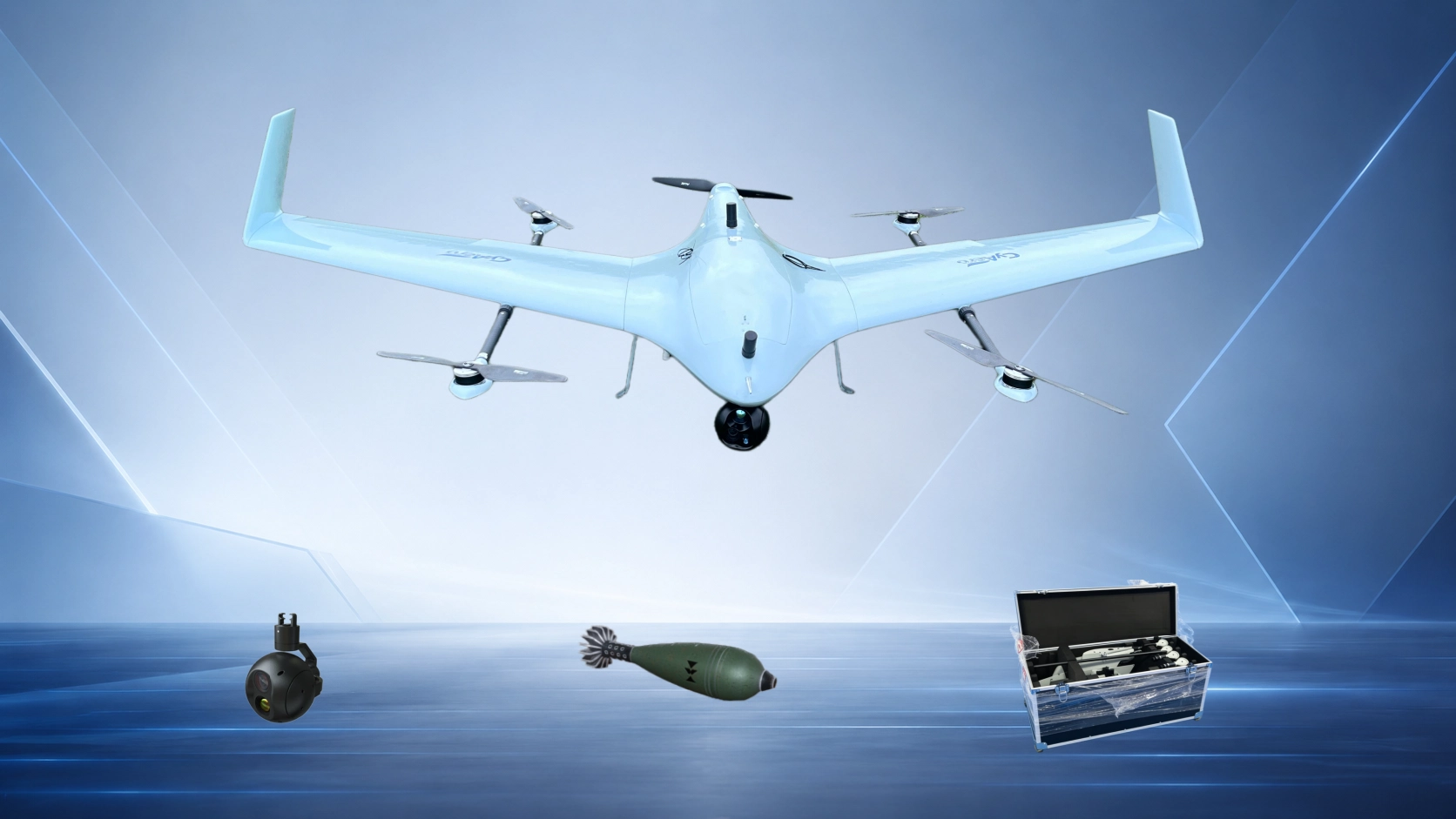

| Electro-Optical Pod I (Optional) | Visible-light (0.62 kg) |
| Electro-Optical Pod II (Optional) | Visible-light + Infrared (0.63 kg) |
| Electro-Optical Pod III (Optional) | Visible-light + Infrared + Laser (0.98 kg) |
| Data Link | 50 km transmission range for video & data |
Electro-Optical Pod I |
Electro-Optical Pod II |
Electro-Optical Pod III |
|
Hardware |
|||
| Working Voltage | 12V | 12V | 12V |
| Operating Temperature | -20°C – +60°C | -20°C – +60°C | -20°C – +60°C |
| Quick Install & Release | Supported | Supported | Supported |
Gimbal |
|||
| Angle Scope | Yaw：±360°*N Pitch：-120° – 30° Roll：±70° |
Yaw：±360°*N Pitch：-120° – 30° Roll：±70° |
Yaw：±360°*N Pitch：-120° – 30° Roll：±70° |
Camera |
|||
| Imager Sensor | 1/2.8″ | 1/2.8″ | 1/2.8″ |
| Resolution | 4K | 4K | 4K |
| Optical Zoom | 10× | 10× | 10× |
| Hybrid Zoom | 40× | 40× | 40× |
| Focal Length | 5 – 50mm (10×) | 5 – 50mm (10×) | 5 – 50mm (10×) |
| FOV H (°) | Wide Angle: 59.16°×29.58°×67.1° Telephoto:6.76°×3.86°×7.7° |
Wide Angle: 59.16°×29.58°×67.1° Telephoto:6.76°×3.86°×7.7° |
Wide Angle: 59.16°×29.58°×67.1° Telephoto:6.76°×3.86°×7.7° |
IR Thermal Imager |
|||
| Sensor | – | Uncooled Vanadium Oxide (VOx) Infrared Focal Plane Array (FPA) | Uncooled Vanadium Oxide (VOx) Infrared Focal Plane Array (FPA) |
| Focal Length | – | 13 mm | 25 mm |
| FOV | – | 32.9°×26.6° | 17.7°×14° |
| Detector Resolution | – | 640×512 | 640×512 |
| Pixel Pitch | – | 12 μm | 12 μm |
| Thermal Sensitivity (NETD) | – | ≤40 mK@F1.0 | – |
| Color Palettes | – | White Hot / Black Hot / Ironbow (Pseudo-color) | White Hot / Black Hot / Ironbow (Pseudo-color) |
| Spectral Range | – | 8 – 14 μm | 8 – 14 μm |
| Digital Zoom | – | 1～8× | 1～8× |
Laser Rangefinder |
|||
| Range | – | – | 5~2000 m |
| Ranging Frequency | – | – | 1～4 Hz |
| Wavelength | – | – | 905 nm |
AI Tracker |
|||
| Target Types | Human and Vehicle | Human and Vehicle | Human and Vehicle |
| Min Target Size | 36×36 pixels | 36×36 pixels | 36×36 pixels |
| Recognition Accuracy | ≥90% | ≥90% | ≥90% |
| Computing Power | 1.0 TOPS | 1.0 TOPS | 1.0 TOPS |
Packing Information |
|||
| Weight | 620±10 g (Without controller) | 632g±10 g (Without controller) | 983±10 g (Without controller) |
| Size | 130.3×105×175 mm | 128.5×105×171.5 mm | 139.1×115×181.5 mm |
