Stable High-Altitude Operations
Operates at altitudes of up to 5,000 m and withstands wind speeds of up to 13.8 m/s.
Product Brief // Raven 4T

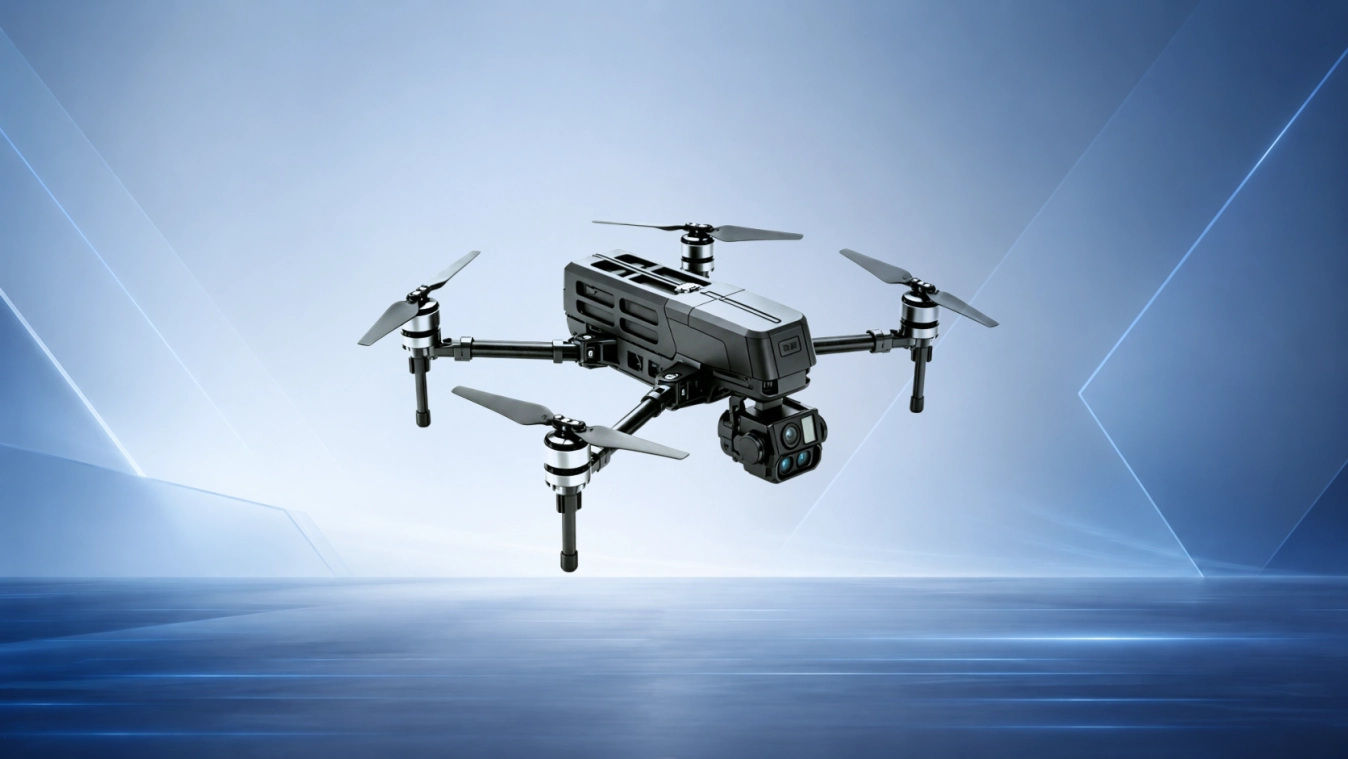

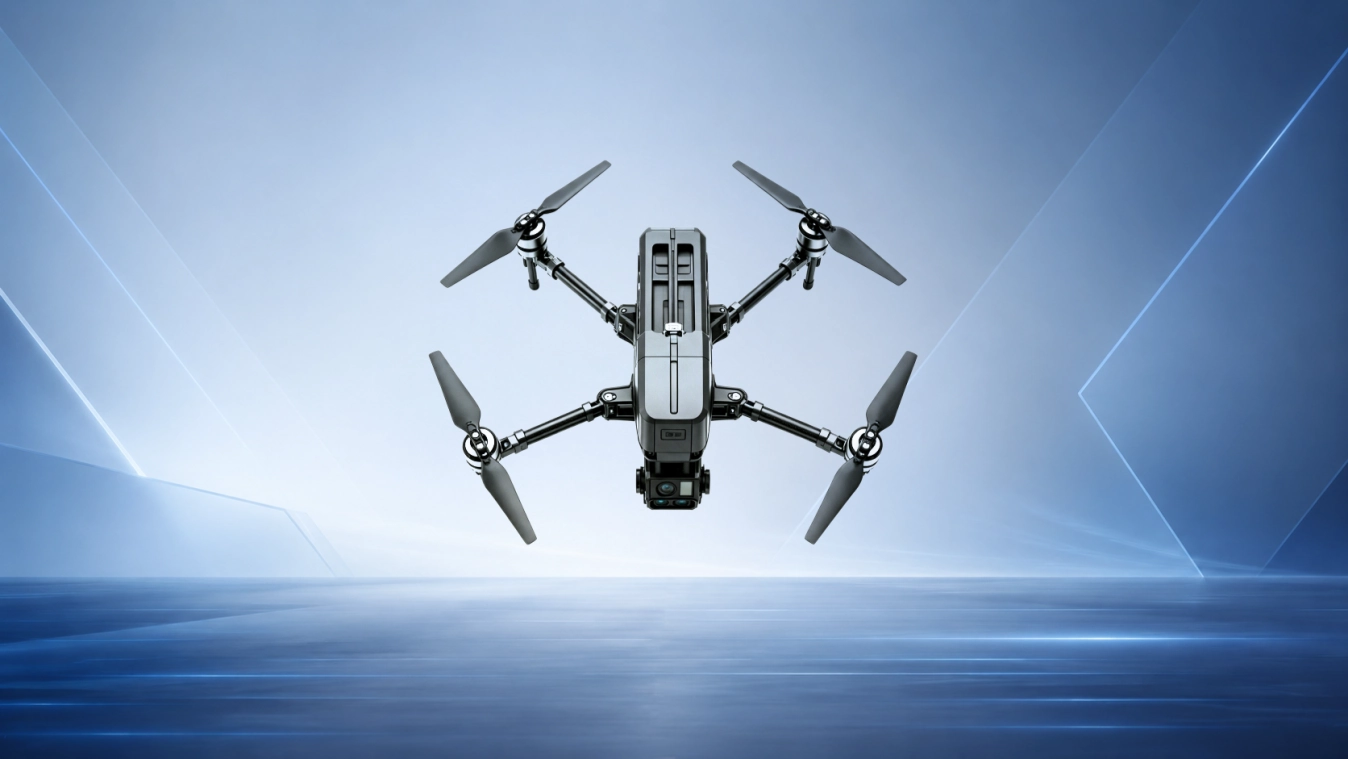

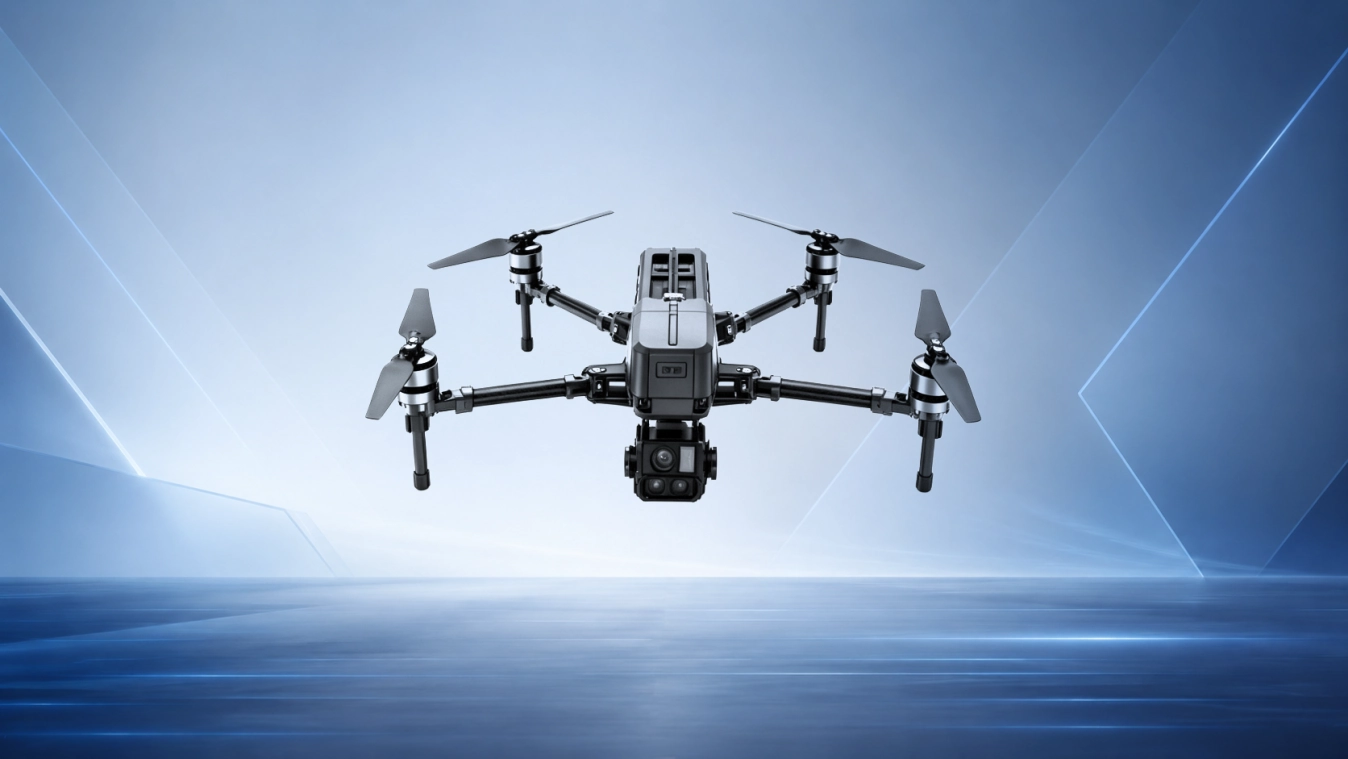

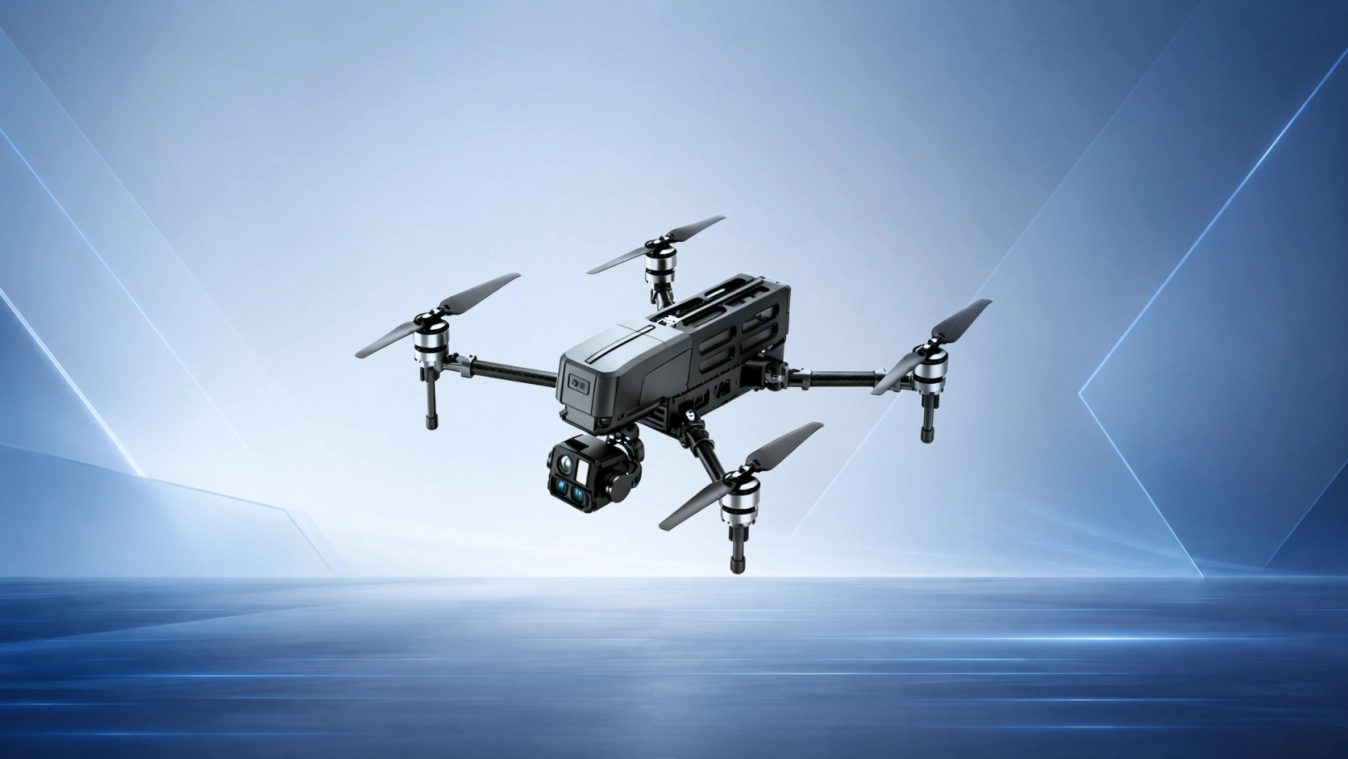

Raven 4T Elite Multi-Mission Platform
A compact, foldable quadrotor engineered for demanding field missions. With a rated 3 kg payload, up to 42 minutes of endurance, and integrated visible-light, thermal, laser-ranging, and AI capabilities, Raven delivers exceptional mission flexibility in a small airframe.
Product Overview
COMPACT AIRFRAME EXPANDED MISSION CAPABILITY
Raven 4T is a compact, foldable quadrotor platform designed for reconnaissance, public safety, emergency response, and other demanding field operations. Its defining advantage is a rated 3 kg mission payload capacity—exceptional for an aircraft in this size class—giving operators greater freedom to integrate specialized sensors and equipment without moving to a larger platform.

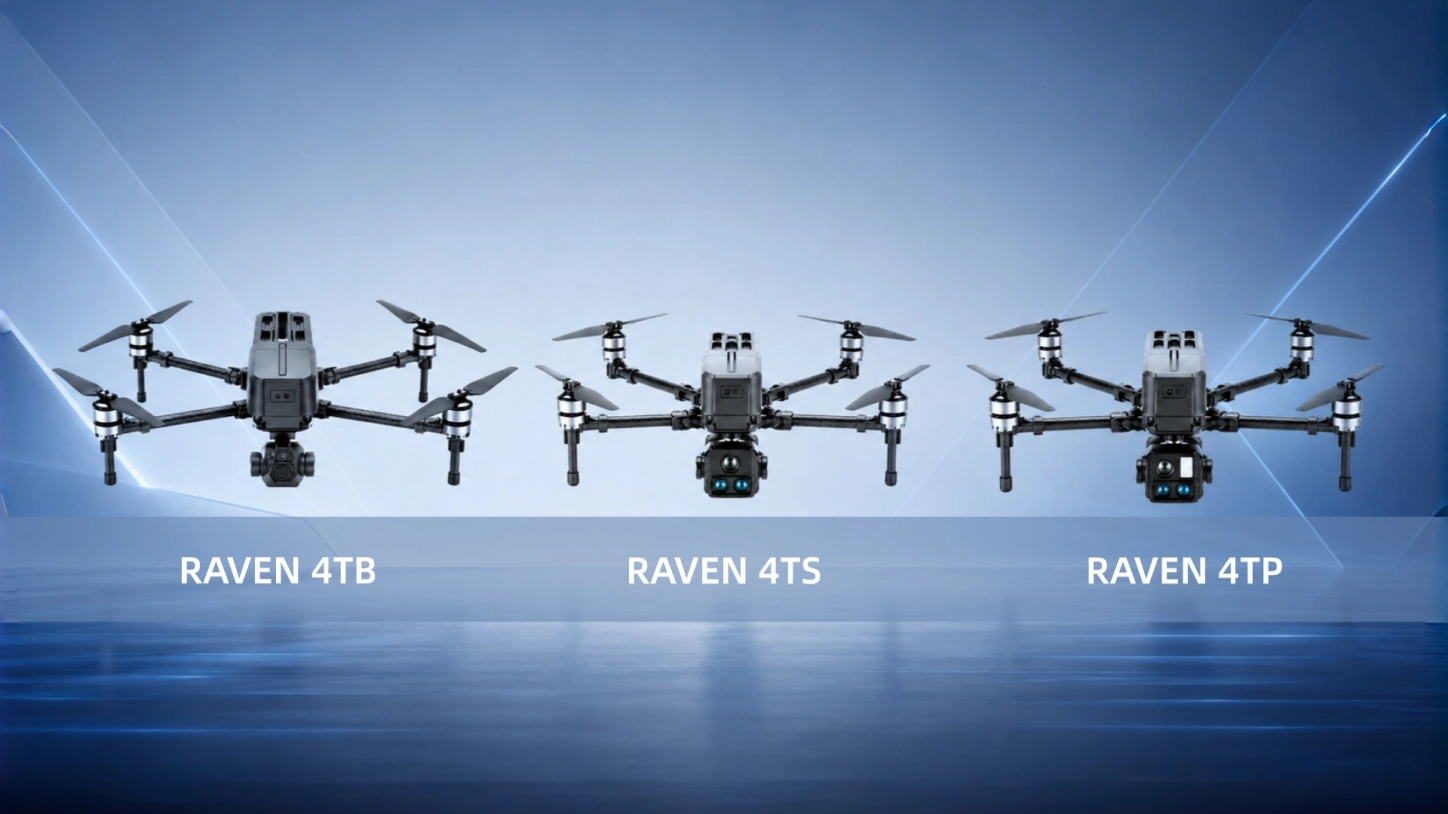

Raven 4TB combines 8 MP zoom and wide-angle cameras; Raven 4TS adds a 640 × 512 thermal imager; and Raven 4TP further includes a 5–1,500 m laser rangefinder. All models feature three-axis stabilization and onboard AI for detection, target locking, tracking, and following.
Key Features
PERFORMANCE WITHOUT COMPROMISE
Rapid Deployment and Response

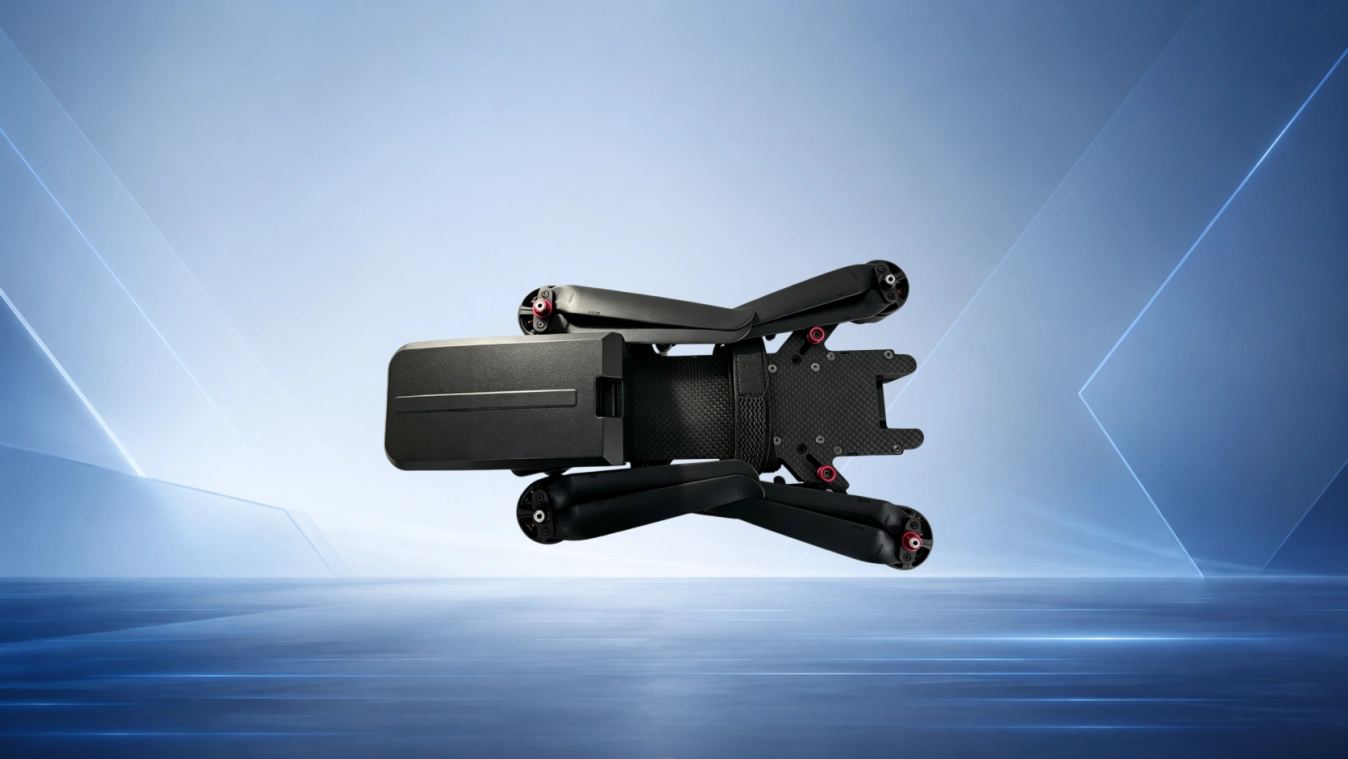

The foldable airframe enables easy transport, while a top speed of 30 m/s allows rapid arrival at the target area.
Flexible Payload Capacity
A 3 kg payload capacity provides ample flexibility for a wide range of mission payloads and application configurations.
Multi-Sensor Fusion
Combines dual visible-light cameras, thermal imaging, laser ranging, and AI tracking for all-weather awareness.
Core Functions
SEE FARTHER ADAPT TO MORE MISSIONS
A Complete Workflow from Payload Expansion to Actionable Intelligence
01
Heavy-Lift Payload Expansion

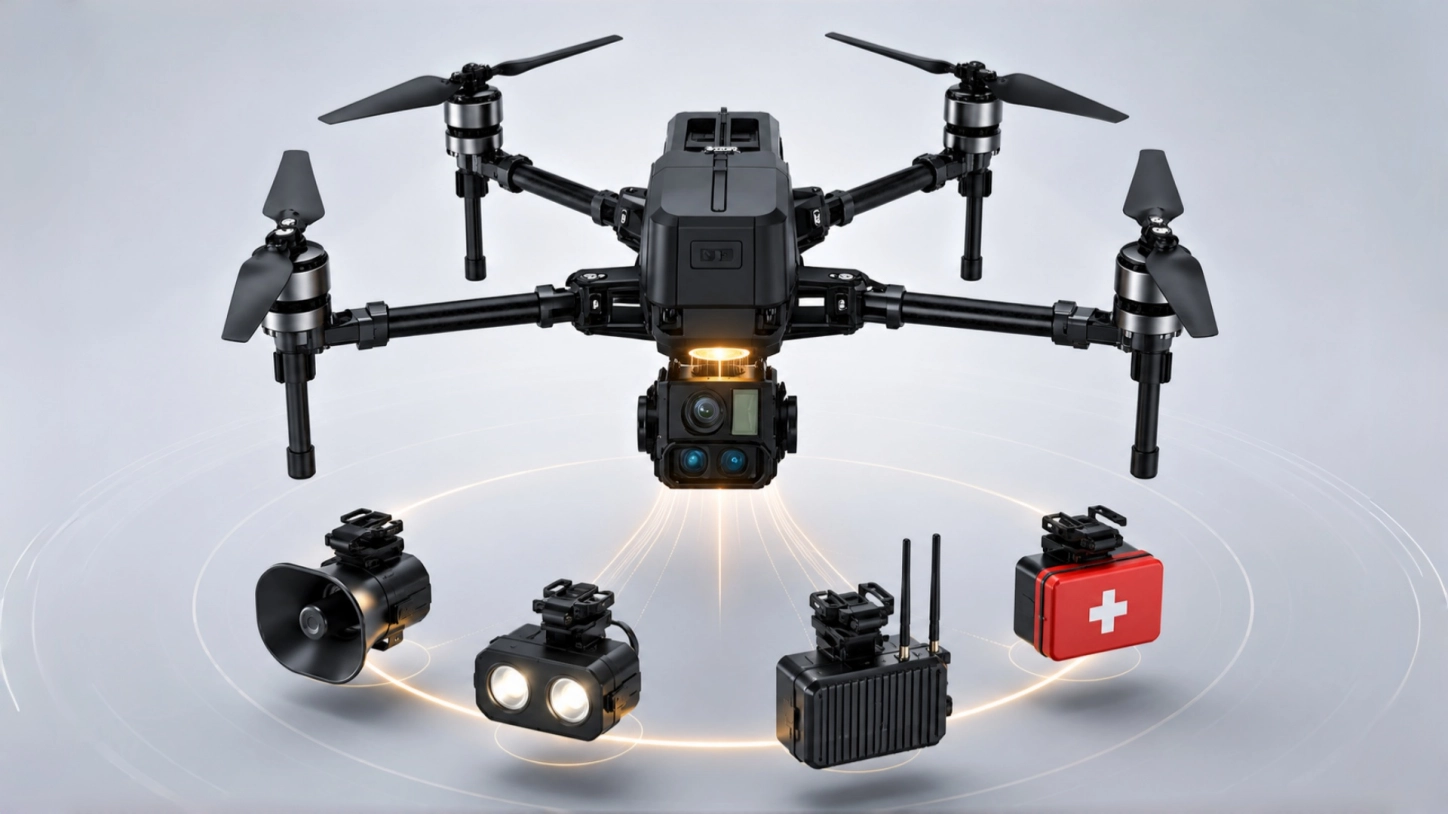

The rated 3 kg payload is Raven's key differentiator, enabling flexible integration of mission-specific modules or application equipment while retaining a compact, foldable form factor.
02
Dual Visible-Light Imaging
An 8 MP wide-angle camera provides broad situational awareness, while the 8 MP zoom camera supports detailed observation and target identification at distance.
03
Thermal Imaging and Laser Ranging
A 640 × 512 thermal sensor reveals heat signatures in darkness, smoke, and visually complex environments, while the 5–1,500 m laser rangefinder supplies accurate distance data in single or continuous mode.
04
AI Detection and Tracking
The onboard AI module detects common targets such as vehicles and personnel, then supports locking, tracking, and following to reduce operator workload during dynamic missions.
05
Stable Flight and Long-Range Command
A three-axis mechanical gimbal, 10 km control range, dual-band 2.4/5.8 GHz data link, and frequency-hopping technology support stable imagery, command, and video transmission.
06
Field-Ready Deployment and Power

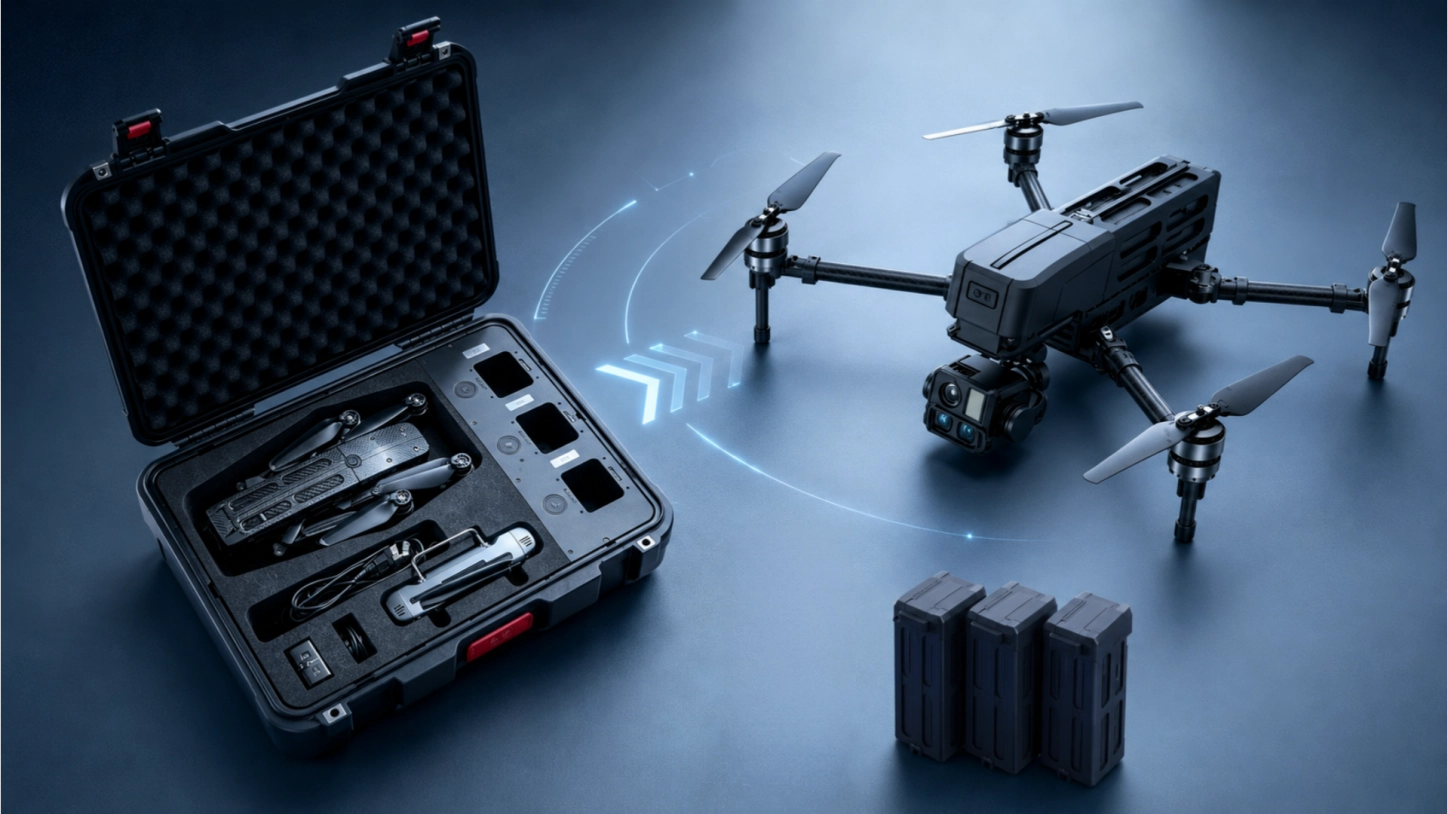

The foldable airframe packs quickly for transport. One battery is standard, an optional three-battery fly-more configuration is available.
Technical Specs
RAVEN 4T SYSTEM SPECIFICATIONS
Aircraft |
||||
| Weight | Approx. 2,450 g | |||
| Dimensions | Folded: 325×170 mm; Unfolded: 325×271mm | |||
| Wheelbase | 420 mm | |||
| Max Horizontal Flight Speed | 30 m/s | |||
| Max Wind Resistance | 13.8 m/s (Beaufort Force 6) | |||
| Max Takeoff Altitude | 5,000 m | |||
| Endurance | 42 min | |||
| Payload Capacity | 3 kg | |||
| Satellite Positioning | GPS + Galileo + BeiDou + GLONASS | |||
| Operating Temperature | -10℃~+45℃ | |||
| Data Link | Dual-band 2.4 GHz/5.8 GHz; supports frequency-hopping technology | |||
Gimbal & Camera |
||||
Raven 4TB |
Raven 4TS |
Raven 4TP |
||
| Gimbal | 3-axis mechanical | 3-axis mechanical | 3-axis mechanical | |
| Visible Camera | Image Sensor | Tele: 1/2.7″ Wide: 1/2.8″ |
Tele: 1/1.8″ Wide: 1/1.8″ |
Tele: 1/1.8″ Wide: 1/1.8″ |
| Resolution | Tele: 2880×1620 Wide: 1920×1080 |
Tele: 3840×2160 Wide: 3840×2160 |
Tele: 3840×2160 Wide: 3840×2160 |
|
| Focal Length | Tele: 140 mm (equiv.) Wide: 34 mm (equiv.) |
Tele: 120 mm (equiv.) Wide: 29 mm (equiv.) |
Tele: 120 mm (equiv.) Wide: 29 mm (equiv.) |
|
| Zoom | 16x Hybrid zoom | Digital zoom (variable magnification) | Digital zoom (variable magnification) | |
| Al Features | Al recognition, locking & tracking | Al recognition, locking & tracking | Al recognition, locking & tracking | |
| Thermal Camera | Resolution | – | 640×512 | 640×512 |
| Focal Length | – | 13 mm | 13 mm | |
| FOV | – | 32.9°×26.6° | 32.9°×26.6° | |
| Spectral Range | – | 8 um~ 14 um | 8 um~14 um | |
| Thermal Sensitivity | – | ≤45mK@F#1.0 | ≤45mK@F#1.0 | |
| Digital Zoom | – | 1x~8x | 1x~ 8x | |
| Al Features | – | Al recognition,locking & tracking | Al recognition,locking & tracking | |
| Laser Range-finder | Measuring Range | – | – | 5 m~1,500 m |
| Accuracy | – | – | ±2 m | |
| Measurement Modes | – | – | Continuous ranging; single-shot ranging | |
